SLY 6 122 100 Z

Headers, Male Pins Overview

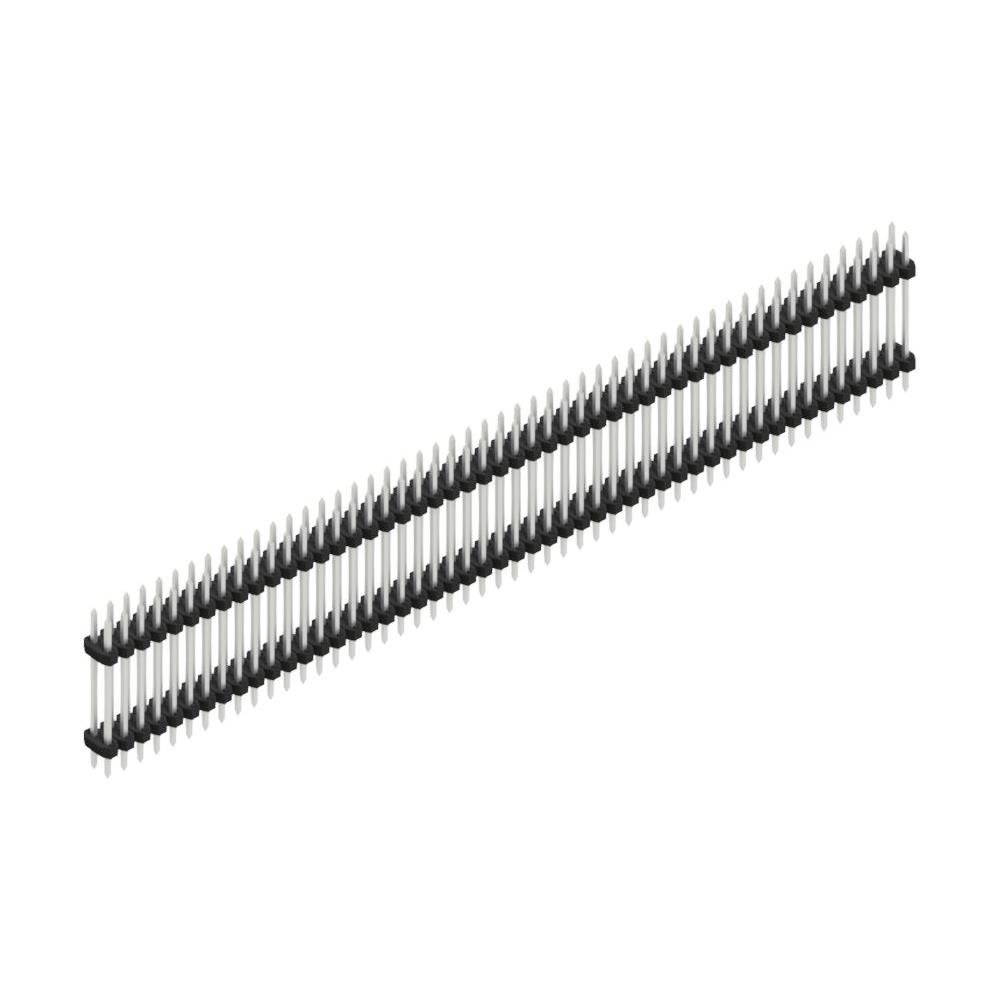

The Fischer Elektronik SLY 6 122 100 Z is a male pin header connector designed for through-hole mounting. It features a two-row configuration with 100 positions and a 2.00 mm pitch. The insulating body is constructed from PA 4.6 GF material, supporting a nominal current of 3 A and a test voltage of 500 V. The component operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Two-row board-to-board or wire-to-board connection style
• Through-hole straight mounting design
• Tin-plated contact surface for reliable electrical performance

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board power distribution

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against official Fischer Elektronik documentation to confirm exact plating specifications and packaging details. Ensure compatibility with standard 2.00 mm pitch PCB layouts. Cross-reference the 100-position count with schematic requirements to prevent mismatched assembly errors during procurement.

Headers, Male Pins Selection Notes

Select this component when a high-density 100-pin interface is required in a compact two-row format. The 2.00 mm pitch allows for moderate trace spacing on standard PCBs. Consider the PA 4.6 GF insulation material for thermal stability and the 3 A current rating for appropriate load handling in low-power applications.

Headers, Male Pins Part Context

This part belongs to the SLY 6 series of pin headers from Fischer Elektronik. The series offers various pole counts while maintaining consistent 2.00 mm pitch and mechanical dimensions. The SLY 6 122 100 Z represents a specific high-count variant within this standardized family of connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.00 mm pitch, 100 position count, and two-row through-hole configuration. Verify that alternative manufacturers offer identical PA 4.6 GF insulation and compatible tin plating to ensure mechanical and electrical interchangeability.
