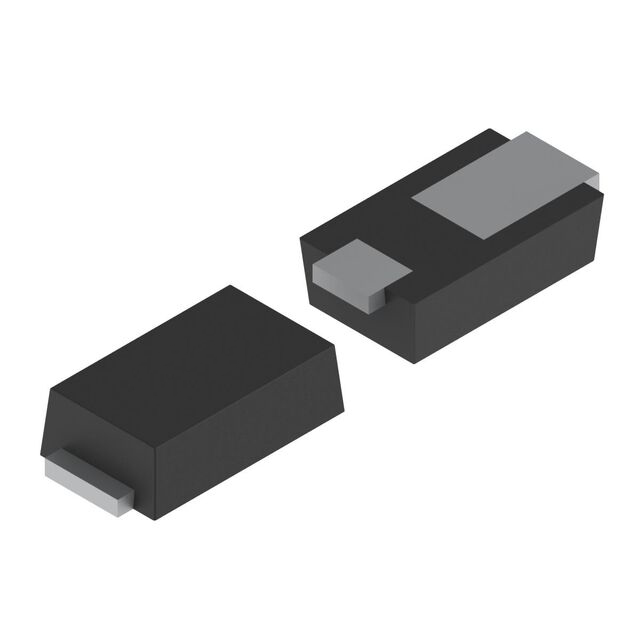

SMD14PB-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE SCHOTTKY 40V 1A SOD323HEB. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SMD14PB-TP
- Description：DIODE SCHOTTKY 40V 1A SOD323HEB
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：1A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 1 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：100 µA @ 40 V
- Capacitance @ Vr, F：50pF @ 4V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：SC-90, SOD-323F
- Supplier Device Package：SOD-323HE-B
- Operating Temperature - Junction：-55°C ~ 125°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SMD14PB-TP
Single Diodes Overview
The SMD14PB-TP is a Schottky barrier rectifier manufactured by Micro Commercial Components. It features a maximum repetitive peak reverse voltage of 40V and an average forward rectified current of 1A. The device utilizes the SOD-323HE-B surface-mount package, designed for low power applications requiring high efficiency.
Single Diodes Feature Summary
- Schottky barrier construction for low forward voltage drop
- Surface mount design in compact SOD-323HE-B package
Single Diodes Applications
- Low voltage DC-DC converters
- Power supply rectification
- Polarity protection circuits
Single Diodes Procurement Notes
Verify the complete part number including the -TP suffix to ensure correct packaging configuration. Confirm the manufacturer is Micro Commercial Components (MCC) as specified. Cross-reference the datasheet for thermal management requirements during integration. Ensure compatibility with automated pick-and-place equipment for the SOD-323HE-B footprint.
Single Diodes Selection Notes
Select this component when a 40V reverse voltage rating and 1A current capacity are required in a small form factor. The Schottky technology offers faster switching speeds compared to standard PN junction diodes. Consider the thermal dissipation capabilities of the SOD-323HE-B package for the specific application environment.
Single Diodes Part Context
This component belongs to the Schottky Barrier Rectifiers category from Micro Commercial Components. It is part of a series of discrete semiconductors designed for consumer markets. The product line includes various diodes, rectifiers, transistors, and MOSFETs focused on quality and performance.
Single Diodes FAQ
What is the maximum repetitive peak reverse voltage?
The maximum repetitive peak reverse voltage is 40V.
What package type does this diode use?
It uses the SOD-323HE-B surface-mount package.
