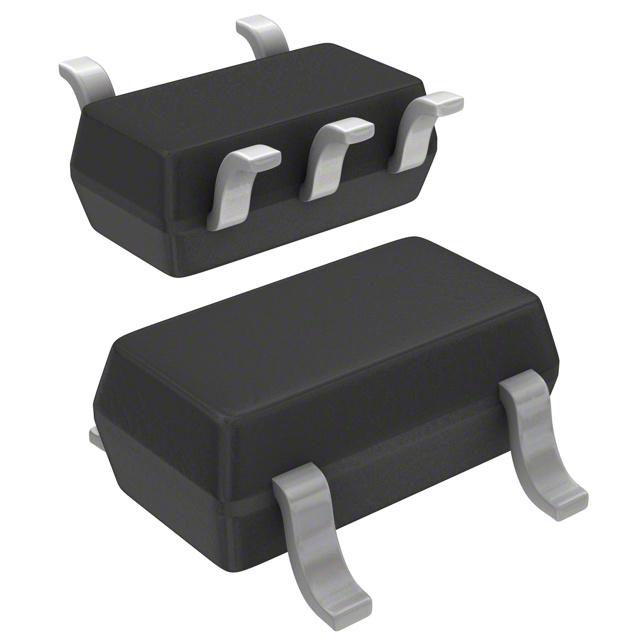

SPX3819M5-L-3-0/TR

$0.38

Description：IC REG LINEAR 3V 500MA SOT23-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5e933ba820a0 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: MaxLinear, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SPX3819M5-L-3-0/TR is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists MaxLinear, Inc.. Its product description is IC REG LINEAR 3V 500MA SOT23-5. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for SPX3819M5-L-3-0/TR

Description：IC REG LINEAR 3V 500MA SOT23-5
Series：-
Mfr：MaxLinear, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：16V
Voltage - Output (Min/Fixed)：3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.7V @ 500mA
Current - Output：500mA
Current - Quiescent (Iq)：8 µA
Current - Supply (Max)：30 mA
PSRR：-
Control Features：Enable
Protection Features：Over Current, Over Temperature, Reverse Polarity
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：SC-74A, SOT-753
Supplier Device Package：SOT-23-5
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for SPX3819M5-L-3-0/TR

SPX3819M5-L-3-0/TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The SPX3819M5-L-3-0/TR is a positive fixed linear regulator manufactured by MaxLinear, Inc., housed in an SOT-23-5 package. It provides a fixed output voltage of 3V with a maximum output current of 500mA. The device supports an input voltage range up to 16V and exhibits a maximum dropout voltage of 0.7V at full load. Quiescent current is specified at 8 µA, while maximum supply current reaches 30 mA. Operating temperature spans from -40°C to 125°C. Protection features include overcurrent, thermal shutdown, and reverse polarity protection.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Provides low quiescent current operation suitable for battery-powered applications
Integrates comprehensive protection mechanisms including overcurrent, thermal shutdown, and reverse polarity safeguards
Features logic-compatible enable control for efficient power management

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable consumer electronics requiring stable 3V rails
Battery-operated instrumentation systems
Standby regulation for switching mode power supplies

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix configuration against official MaxLinear documentation to ensure compatibility with required packaging and voltage tolerances. Confirm that the SOT-23-5 footprint matches the target PCB layout constraints. Cross-reference the part number with the manufacturer's latest datasheet to validate active status and any recent design changes or obsolescence notices before finalizing procurement plans.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when a fixed 3V output is required within a compact SOT-23-5 form factor. Ensure the input voltage does not exceed the 16V maximum rating under all operating conditions. Consider the 0.7V dropout characteristic relative to the minimum expected input voltage to maintain regulation. Verify that the 500mA current capability meets the peak load requirements of the application circuit.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the SPX3819 series of low-noise LDO regulators designed for high-efficiency performance. The series offers various fixed voltage options and adjustable variants across multiple packages including SOT-23-5, SOIC-8, and DFN-8. The SPX3819M5 variant specifically targets space-constrained designs while maintaining robust protection features and low static current consumption typical of the family.
