SSF6910

$0.49

Description：MOSFET, N-CH, SINGLE, 6.80A, 60V
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:381765f70d1d Category: Single FETs, MOSFETs Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSF6910 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET, N-CH, SINGLE, 6.80A, 60V. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for SSF6910

Description：MOSFET, N-CH, SINGLE, 6.80A, 60V
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：60 V
Current - Continuous Drain (Id) @ 25°C：6.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：60mOhm @ 6A, 10V
Vgs(th) (Max) @ Id：2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：21 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：1300 pF @ 25 V
FET Feature：-
Power Dissipation (Max)：5.4W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

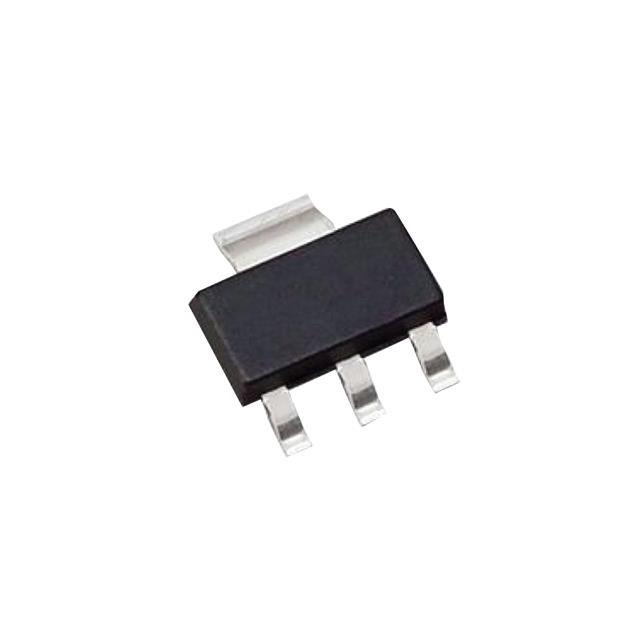

Supplier Device Package：SOT-223
Package / Case：TO-261-4, TO-261AA

Single FETs, MOSFETs datasheet and documents for SSF6910

SSF6910

Single FETs, MOSFETs Overview

The SSF6910 is a 60V N-Channel MOSFET in an SOT-223 package. It features a maximum drain current of 6.8A and a low on-resistance of 60mΩ at VGS=10V. The device supports a pulsed drain current of 27.2A and has a power dissipation of 5.4W at 25°C case temperature. Key electrical parameters include a gate threshold voltage of 1.2V to 2.5V, total gate charge of 14nC typical, and reverse recovery time of 14.6ns. Thermal resistance is 85°C/W junction-to-ambient.

Single FETs, MOSFETs Feature Summary

Advanced MOSFET process technology for high cell density
Fast switching and reverse body recovery characteristics
Low on-resistance combined with low gate charge

Single FETs, MOSFETs Applications

Motor drive systems
Power tools
LED lighting circuits

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision and manufacturer documentation before integration. Confirm that the SOT-223 package dimensions and thermal ratings align with your PCB layout and cooling requirements. Ensure operating conditions remain within the absolute maximum ratings for voltage, current, and temperature to maintain device reliability.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring efficient switching in compact spaces. The low RDS(on) minimizes conduction losses, while fast switching reduces dynamic losses. Consider the thermal resistance when designing heat dissipation paths, as power derating is required above 25°C case temperature.

Single FETs, MOSFETs Part Context

This part belongs to Good-Ark Semiconductor's line of 60V N-Channel MOSFETs. It utilizes advanced process techniques to achieve high efficiency. The SOT-223 package provides a balance between current handling capability and board space efficiency for surface-mount applications.
