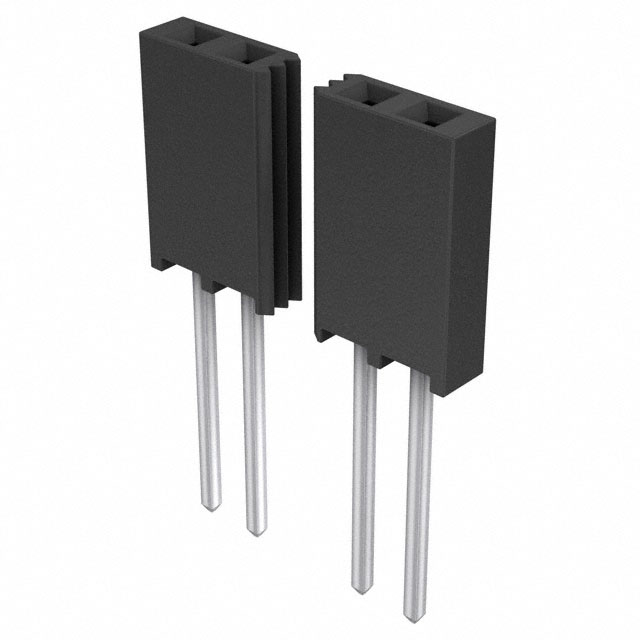

SSQ-150-03-F-S

SSQ-150-03-F-S is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 50POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for SSQ-150-03-F-S

• Description：CONN RCPT 50POS 0.1 GOLD PCB
• Series：SSQ
• Mfr：Samtec Inc.
• Package：Bulk,Bulk
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board or Cable
• Number of Positions：50
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：3.00µin (0.076µm)
• Insulation Color：Black
• Insulation Height：0.335" (8.51mm)
• Contact Length - Post：0.394" (10.00mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：465VAC, 655VDC

Headers, Receptacles, Female Sockets datasheet and documents for SSQ-150-03-F-S
