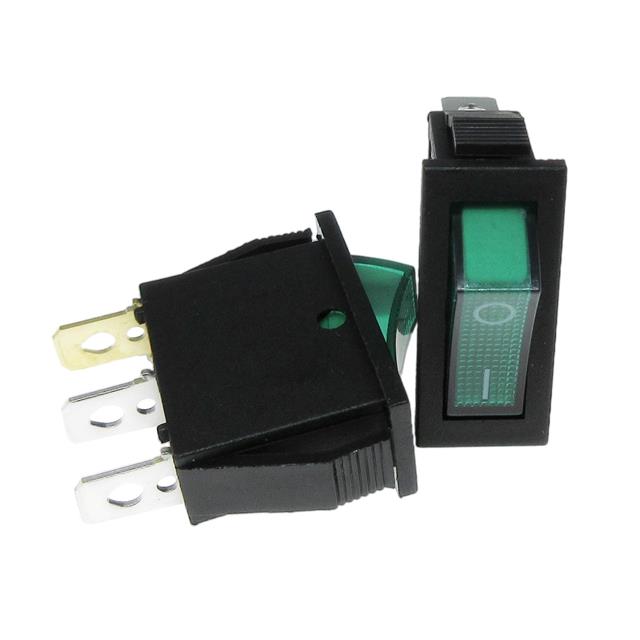

SW-R1-1A-E-LG13-0

SW-R1-1A-E-LG13-0 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists Adam Tech. Its product description is SWITCH ROCKER SPST 20A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for SW-R1-1A-E-LG13-0

• Description：SWITCH ROCKER SPST 20A 125V
• Series：SW
• Mfr：Adam Tech
• Package：Bag
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：20A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Concave (Curved) - Illuminated
• Color - Actuator/Cap：Green
• Actuator Marking：O -
• Illumination Type, Color：LED, Green
• Illumination Voltage (Nominal)：12 VDC
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Rectangular - 28.00mm x 10.00mm
• Operating Temperature：-25°C ~ 85°C
• Approval Agency：-

Rocker Switches datasheet and documents for SW-R1-1A-E-LG13-0
