SX5B11.0592F2020F30

Crystals Overview

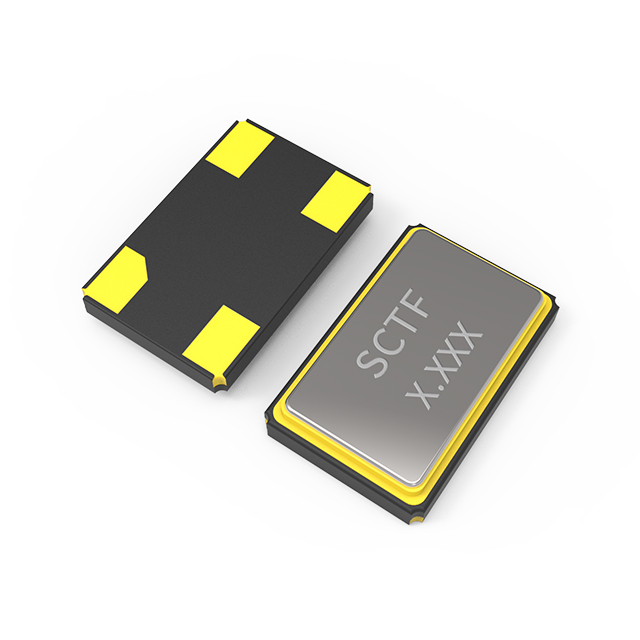

The SX5B11.0592F2020F30 is a surface-mount crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates at a nominal frequency of 11.0592 MHz and utilizes CMOS output logic. The device supports a supply voltage range of 1.62V to 3.63V and features an enable/disable control function. It provides a frequency tolerance of ±20ppm and a stability of ±30ppm over the operating temperature range of -40°C to +85°C. The component is housed in a standard SMD5032-4P package.

Crystals Feature Summary

• Integrated CMOS output driver for digital signal interfacing
• Voltage-controlled enable and disable functionality for power management
• Wide industrial temperature rating for harsh environment operation

Crystals Applications

• Embedded system clock generation
• Communication interface timing sources
• Microcontroller peripheral synchronization

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure compatibility with required voltage levels and load capacitance specifications. Confirm that the SMD5032-4P footprint matches the target PCB design constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when a stable 11.0592 MHz reference is required for CMOS-based digital circuits within the specified industrial temperature range. Ensure the application circuit supports the 1.62V to 3.63V supply window and utilizes the enable pin if power-down states are necessary for system efficiency.

Crystals Part Context

This model belongs to the SX5 series of surface-mount crystal oscillators from Shenzhen SCTF Electronics. The series offers various frequency options and package sizes, designed to replace discrete crystal and resonator combinations with integrated, ready-to-use clock signals for compact electronic designs.

Crystals Replacement Considerations

Direct substitutes include other 11.0592 MHz CMOS oscillators in the SMD5032-4P package with matching ±20ppm tolerance and compatible supply voltage ranges. Verify pinout compatibility and thermal characteristics when cross-referencing with alternative manufacturers.
