SX5M7.500B10F20TNN

Oscillators Overview

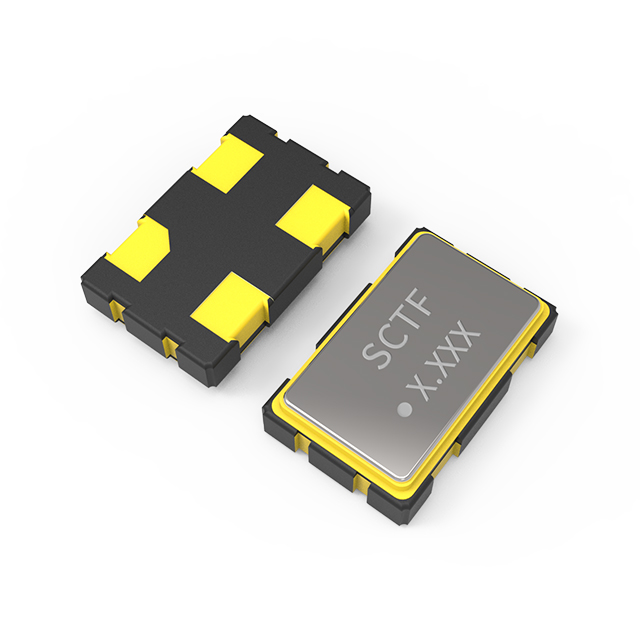

The SX5M7.500B10F20TNN is a 7.5 MHz crystal oscillator manufactured by Shenzhen SCTF Electronics. It operates using CMOS output technology and supports a 3.3V enable/disable control function. The component is housed in a compact 4-SMD, No Lead package configuration. This specific model provides standard frequency stability suitable for general electronic timing applications requiring precise clock signals.

Oscillators Feature Summary

• Integrates CMOS output interface for digital logic compatibility
• Features active 3.3V enable and disable control capability
• Utilizes surface-mount 4-SMD no-lead packaging design

Oscillators Applications

• General purpose electronic timing circuits
• Digital system clock generation
• Embedded device synchronization

Oscillators Procurement Notes

Verify the exact manufacturer part number against official Shenzhen SCTF Electronics documentation to ensure authenticity. Confirm that the 3.3V enable/disable functionality aligns with your system power management requirements. Check package dimensions against your PCB footprint specifications before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 7.5 MHz CMOS clock signal is required with low-profile surface-mount integration. Ensure the design accommodates the 4-SMD no-lead form factor. Verify that the 3.3V logic levels match the target circuit's voltage domain. Consider thermal management and board space constraints associated with small outline packages.

Oscillators Part Context

This oscillator belongs to the series of surface-mount crystal oscillators produced by Shenzhen SCTF Electronics. These components are designed to replace through-hole alternatives in modern high-density electronics. The 4-SMD format allows for automated assembly processes typical in contemporary manufacturing environments.

Oscillators Replacement Considerations

Consult official distributor databases for cross-reference data. Verify pinout compatibility and electrical parameters if substituting with other 7.5 MHz CMOS oscillators.
