SX7DF156.250B20F30PNN

Oscillators Overview

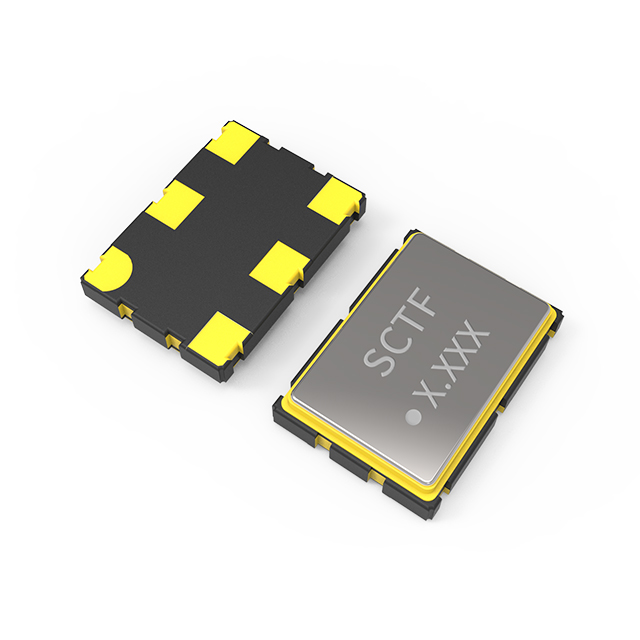

The SX7DF156.250B20F30PNN is a standard crystal oscillator (XO) manufactured by Shenzhen SCTF Electronics. It operates at a fixed frequency of 156.25 MHz and utilizes LVPECL output levels. The device is powered by a 3.3V supply voltage and features enable/disable control functionality. It is housed in a compact 6-SMD, no-lead package designed for surface-mount assembly.

Oscillators Feature Summary

• Provides stable 156.25 MHz clock signals using LVPECL differential output technology
• Includes hardware enable and disable control pins for power management flexibility
• Designed for high-reliability surface-mount integration in space-constrained PCB layouts

Oscillators Applications

• High-speed serial communication interface clock generation
• Data transmission equipment requiring precise timing references
• Telecommunications infrastructure signal processing systems

Oscillators Procurement Notes

Verify the specific suffix PNN against official datasheets to confirm LVPECL output compatibility and 3.3V operating voltage requirements. Ensure the 6-SMD footprint matches the target PCB design. Confirm that the enable/disable pin configuration aligns with system power sequencing needs before finalizing procurement orders.

Oscillators Selection Notes

Select this component when LVPECL signaling is required for 156.25 MHz applications. The 3.3V supply specification must match the system voltage rails. Consider the enable/disable feature if dynamic power saving or clock gating is necessary for the specific electronic design implementation.

Oscillators Part Context

This oscillator belongs to the SX7DF series from Shenzhen SCTF Electronics, which specializes in precision timing solutions. The model represents a standard XO variant optimized for digital signal integrity. It serves as a critical timing reference component within complex electronic assemblies requiring synchronized data operations.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and electrical specifications carefully when considering alternative sources.
