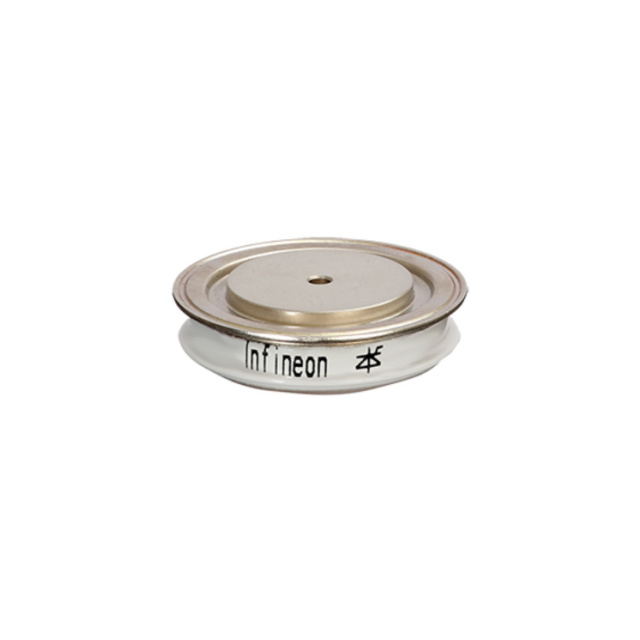

T1080N02TOFXPSA1

Description：SCR MODULE 600V 2000A DO200AA
Series：-

SKU:9ac206efaf9c Category: SCRs - Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

T1080N02TOFXPSA1 is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is SCR MODULE 600V 2000A DO200AA. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for T1080N02TOFXPSA1

Description：SCR MODULE 600V 2000A DO200AA
Series：-
Mfr：Infineon Technologies
Package：Tray
Structure：Single
Number of SCRs, Diodes：1 SCR
Voltage - Off State：600 V
Current - On State (It (AV)) (Max)：1078 A
Current - On State (It (RMS)) (Max)：2000 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：16000A @ 50Hz
Operating Temperature：-40°C ~ 140°C
Mounting Type：Clamp On
Package / Case：DO-200AA, A-PUK
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：200 mA
Current - Hold (Ih) (Max)：200 mA
Grade：-
Qualification：-

SCRs - Modules datasheet and documents for T1080N02TOFXPSA1

T1080N02TOFXPSA1

SCRs - Modules Overview

The T1080N02TOFXPSA1 is a single silicon-controlled rectifier module manufactured by Infineon Technologies. It features a clamp-on design within the DO-200AA package, rated for a maximum off-state voltage of 600 V. The device supports a maximum RMS on-state current of 2000 A and an average on-state current of 1078 A. This component is designed for chassis mounting and operates within a temperature range suitable for high-power industrial applications requiring robust thyristor control.

SCRs - Modules Feature Summary

Single SCR configuration with clamp-on mechanical structure
High current handling capability up to 2000 A RMS
DO-200AA package format for direct chassis integration

SCRs - Modules Applications

Industrial motor drives
Power supply systems
Resistive load control

SCRs - Modules Procurement Notes

Verify part authenticity through authorized Infineon distributors or certified channels. Confirm that the specific suffix matches the required electrical specifications. Check for obsolescence status as some listings indicate this model may be discontinued. Ensure compatibility with existing thermal management solutions before procurement.

SCRs - Modules Selection Notes

Select this module when high continuous current capacity is required in a compact form factor. The clamp-on design simplifies installation compared to bolted alternatives. Consider the 600 V rating against system voltage peaks. Evaluate thermal resistance requirements for the intended heat sink interface to ensure reliable operation under full load conditions.

SCRs - Modules Part Context

This component belongs to Infineon's TENCO series of thyristor modules. These devices are engineered for phase control applications where high reliability and current density are critical. The DO-200AA package is standard for medium-to-high power industrial thyristors, allowing for efficient heat dissipation through direct contact with cooling surfaces.
