TG-5510CA-94N 12.8000M0

Oscillators Overview

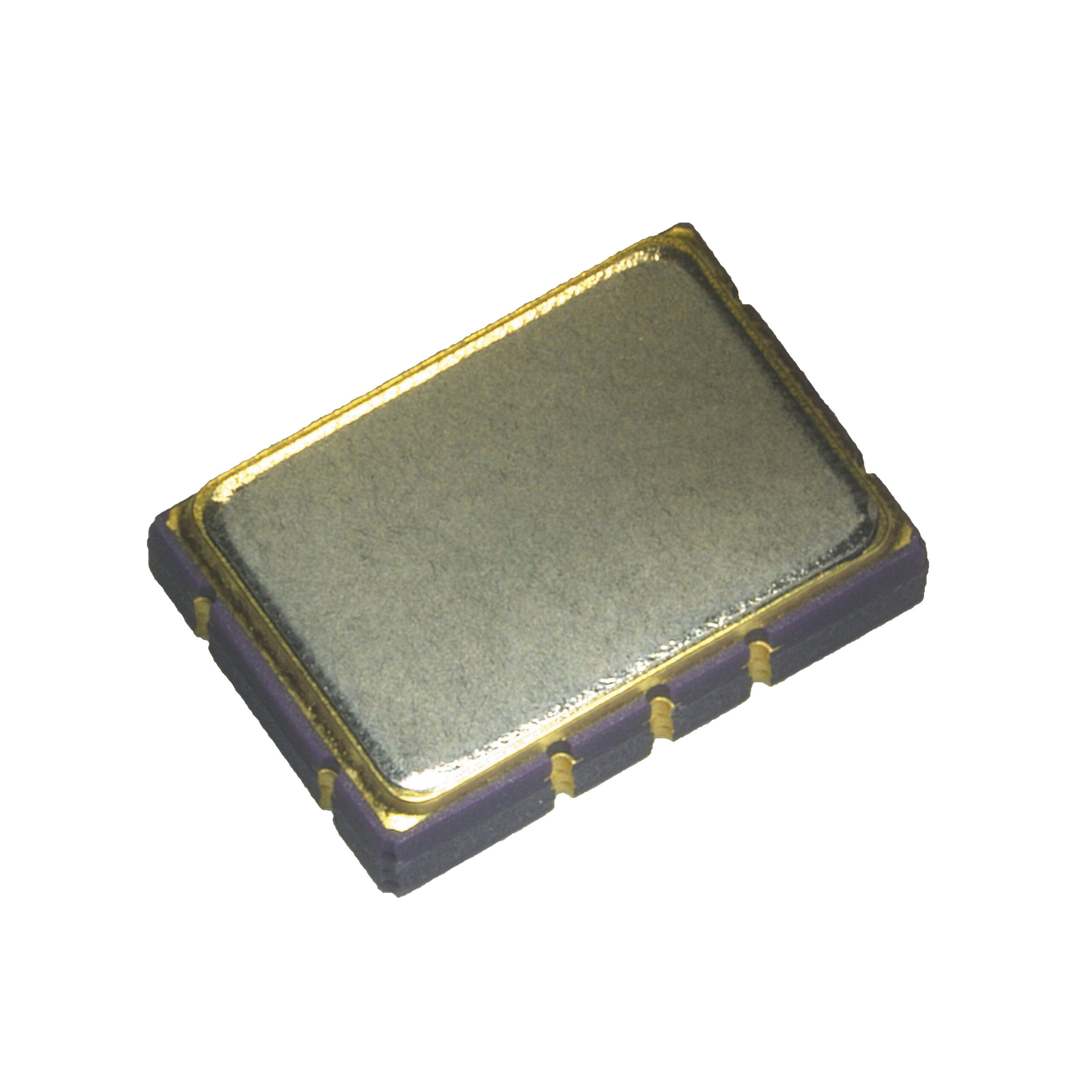

The TG-5510CA-94N 12.8000M0 is a temperature-compensated crystal oscillator (TCXO) manufactured by Epson Timing. It operates at a nominal frequency of 12.8 MHz with a stability of +/-0.28 ppm. The device utilizes a CMOS output signal and functions within a supply voltage range of 3.3V. It supports an enable/disable control function for power management. The component is housed in a 10-SMD, No Lead package suitable for surface-mount applications. Operating temperatures range from -40°C to +85°C.

Oscillators Feature Summary

• Integrated temperature compensation for high frequency stability
• CMOS output interface compatible with digital logic circuits
• Hardware enable and disable pin for active power control

Oscillators Applications

• High-speed data communication interfaces requiring precise clocking
• Network equipment and telecommunications infrastructure
• Industrial control systems operating in variable thermal environments

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency and tolerance specifications. Confirm that the package type aligns with the PCB footprint design. Ensure the supply voltage requirements are met by the system design. Check for RoHS compliance documentation if environmental regulations apply. Validate the operating temperature range against the intended application environment.

Oscillators Selection Notes

Select this component when stable frequency performance is critical under varying thermal conditions. Consider the CMOS output level compatibility with downstream logic families. Evaluate the physical size constraints against the available board space. Assess the power consumption implications of the enable/disable functionality. Verify that the 12.8 MHz frequency meets the system timing requirements.

Oscillators Part Context

This TCXO belongs to the TG-5510 series, designed for applications demanding superior frequency stability compared to standard crystal oscillators. The series typically offers low phase noise and high reliability. It serves as a primary clock source for processors and communication modules where jitter sensitivity is a concern.

Oscillators Replacement Considerations

Direct substitutes include other Epson TCXOs with identical pinouts and electrical characteristics. Cross-reference part numbers such as TG-5510CA variants with matching frequencies. Ensure any replacement maintains the same stability and package dimensions.
