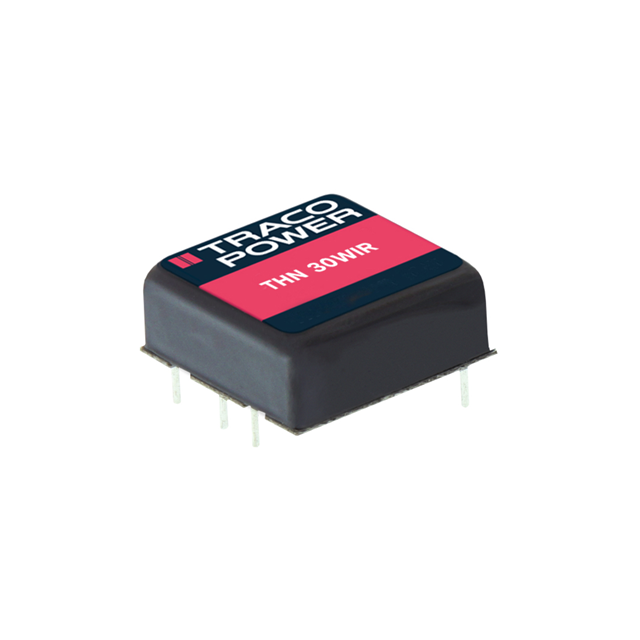

THN 30-2413WIR

THN 30-2413WIR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is 33 WATT DC/DC CONVERTER, RAILWAY. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THN 30-2413WIR

• Description：33 WATT DC/DC CONVERTER, RAILWAY
• Series：THN 30WIR (30W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：30 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for THN 30-2413WIR
