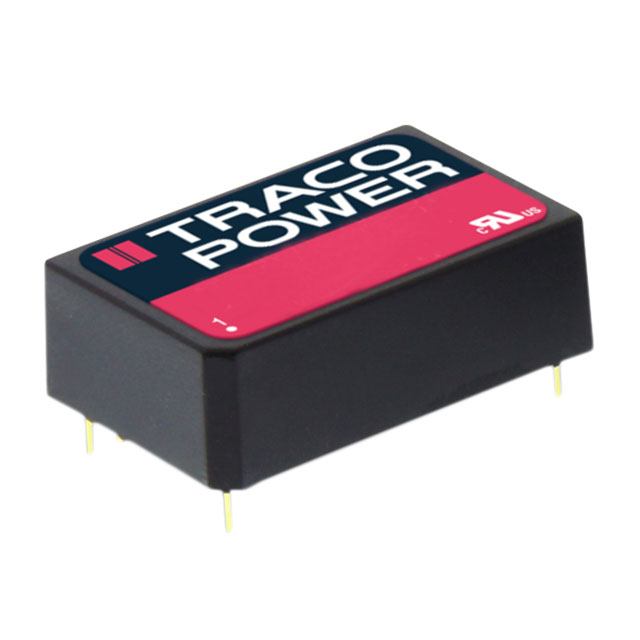

THP 3-4823

THP 3-4823 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-15V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THP 3-4823

• Description：DC DC CONVERTER +/-15V 3W
• Series：THP 3 (3W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：80V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：3 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 6 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for THP 3-4823
