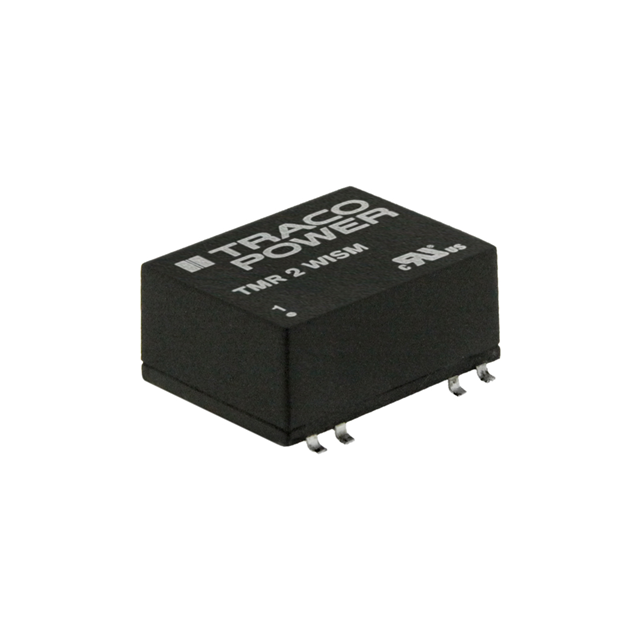

TMR 2-2422WISM

TMR 2-2422WISM is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-12V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 2-2422WISM

• Description：DC DC CONVERTER +/-12V 2W
• Series：TMR 2WISM (2W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：83mA, 83mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, SCP
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：83%
• Mounting Type：Surface Mount
• Package / Case：14-SMD Module, 7 Leads
• Size / Dimension：0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for TMR 2-2422WISM
