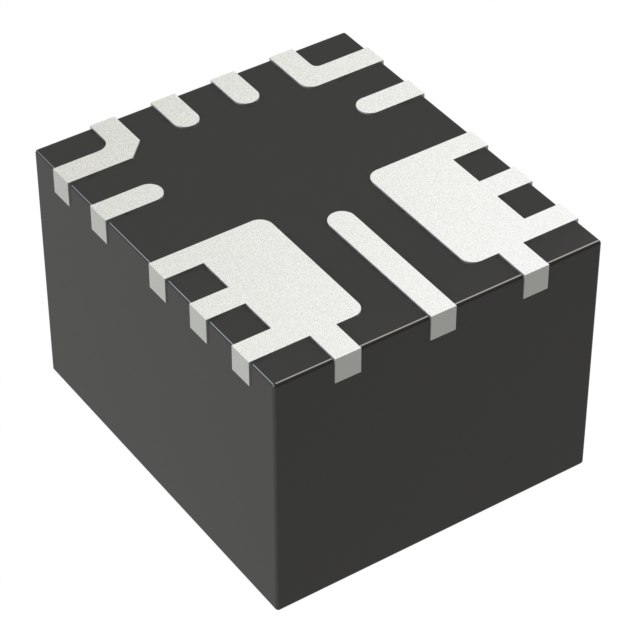

TPSM828301ARDSR

TPSM828301ARDSR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is 2.25-V TO 5.5-V, 1-A HIGH-EFFICI. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TPSM828301ARDSR

• Description：2.25-V TO 5.5-V, 1-A HIGH-EFFICI
• Series：SWIFT™
• Mfr：Texas Instruments
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.25V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：0.5 ~ 4.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：5 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 125°C
• Efficiency：-
• Mounting Type：Surface Mount
• Package / Case：9-PowerFQFN Module
• Size / Dimension：0.12" L x 0.12" W x 0.08" H (3.0mm x 3.0mm x 2.0mm)
• Supplier Device Package：9-QFN-FCMOD (3x3)
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for TPSM828301ARDSR
