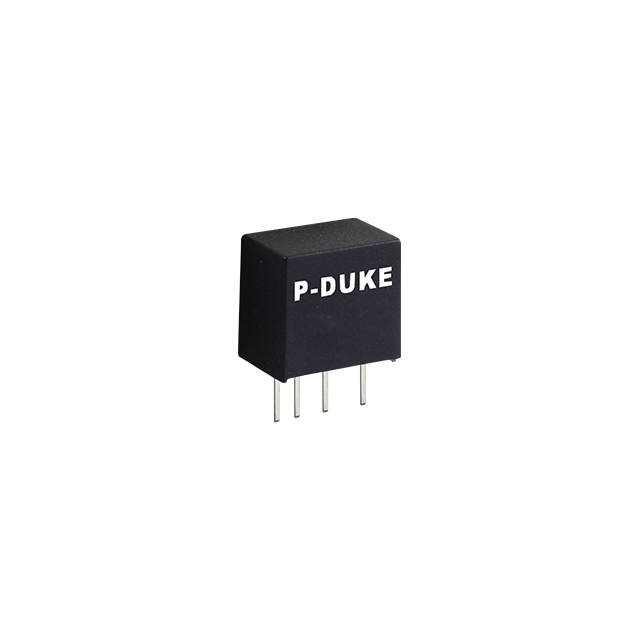

UDH01-24D05

UDH01-24D05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER +/-5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for UDH01-24D05

• Description：DC DC CONVERTER +/-5V 1W
• Series：UDH01 (1W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：1 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：79%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-

DC DC Converters datasheet and documents for UDH01-24D05
