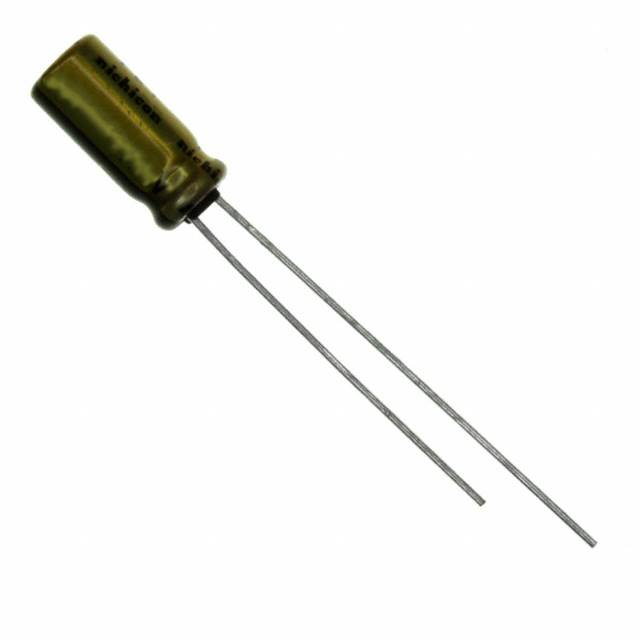

UFW2AR47MDD1TD

UFW2AR47MDD1TD is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 0.47UF 20% 100V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UFW2AR47MDD1TD

• Description：CAP ALUM 0.47UF 20% 100V RADIAL
• Series：UFW
• Mfr：Nichicon
• Package：Tape & Box (TB)
• Capacitance：0.47 µF
• Tolerance：±20%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：Audio
• Ripple Current @ Low Frequency：10 mA @ 120 Hz
• Ripple Current @ High Frequency：20 mA @ 10 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.197" Dia (5.00mm)
• Height - Seated (Max)：0.492" (12.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for UFW2AR47MDD1TD
