UGJL2030CTH-BP

Diode Arrays Overview

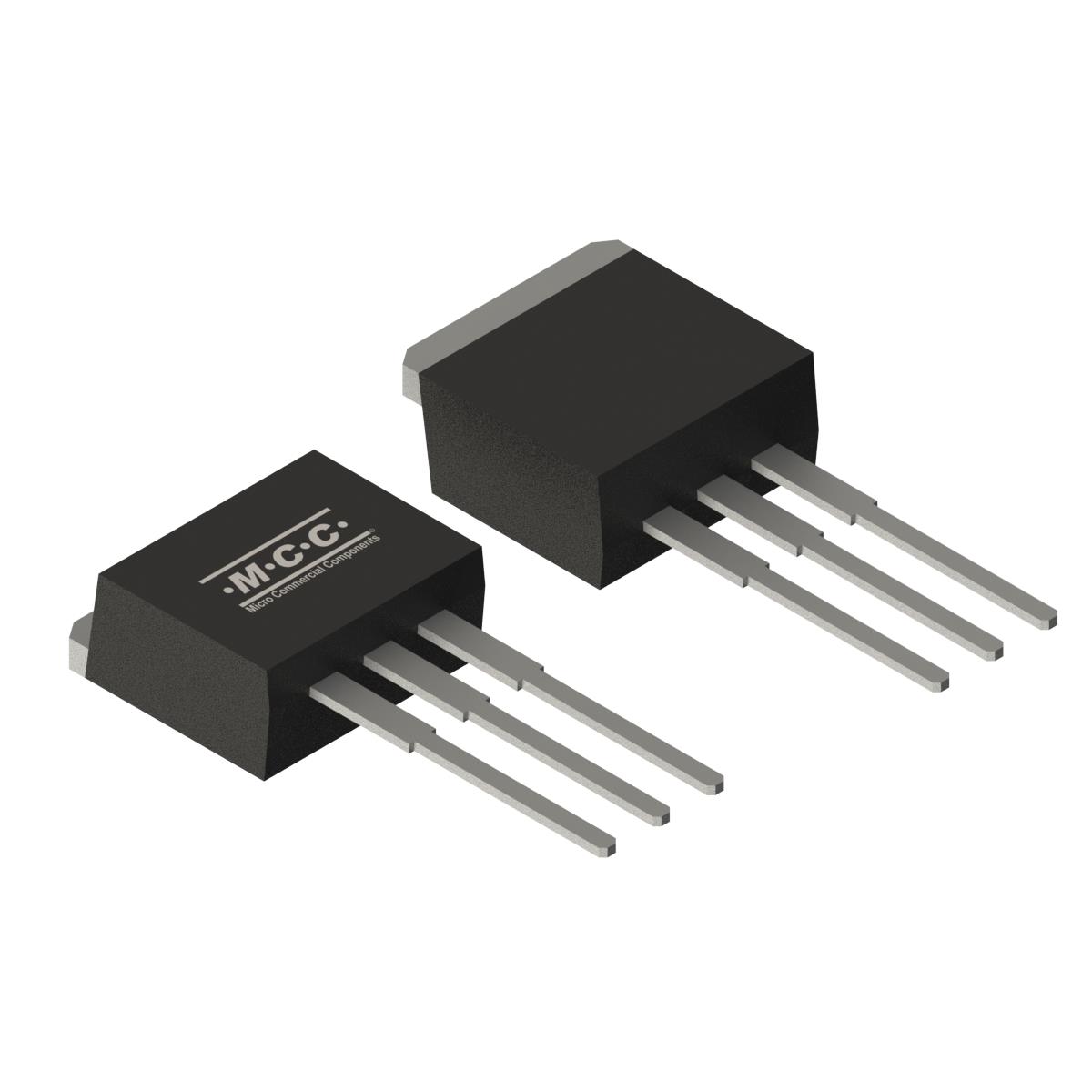

The UGJL2030CTH-BP is a 20 Amp, 300 Volt Super Fast Rectifier manufactured by Micro Commercial Components. It utilizes a TO-262L package and features a typical thermal resistance of 2.0°C/W from junction to case. The device supports an operating junction temperature range from -55°C to +175°C and offers a maximum reverse recovery time of 25ns. It provides a peak forward surge current capability of 150A and maintains low reverse leakage characteristics.

Diode Arrays Feature Summary

• Super fast recovery performance with a maximum reverse recovery time of 25ns
• High surge forward current capability for robust transient handling
• Epoxy material meets UL 94 V-0 flammability rating standards
• Lead-free finish compliant with RoHS directives

Diode Arrays Applications

• High frequency switching power supplies
• Free wheeling diode applications in inductive circuits
• DC-DC converter output rectification

Diode Arrays Procurement Notes

Verify the specific ordering suffix when sourcing this component. The standard designation includes the -BP suffix which indicates lead-free and RoHS compliance. If halogen-free requirements are necessary, confirm that the -HF suffix has been added to the part number. Ensure the procurement channel is an authorized distributor to guarantee genuine parts and full traceability as per manufacturer guidelines.

Diode Arrays Selection Notes

Select this component for designs requiring high average forward current of 20A at a case temperature of 130°C. The super fast recovery characteristic makes it suitable for high-frequency applications where minimizing reverse recovery charge is critical. Consider the thermal resistance of 2.0°C/W when designing heat dissipation strategies for the TO-262L package.

Diode Arrays Part Context

This device belongs to the UGJL series of super fast rectifiers from Micro Commercial Components. It is designed for general purpose rectification in demanding environments. The TO-262L package provides a balance of current handling capacity and mounting flexibility for through-hole assembly on printed circuit boards.

Diode Arrays Replacement Considerations

Direct replacements must match the 20A current rating, 300V voltage rating, and TO-262L package. Verify that substitute components offer comparable reverse recovery times and thermal resistance values to ensure circuit performance remains within specifications.
