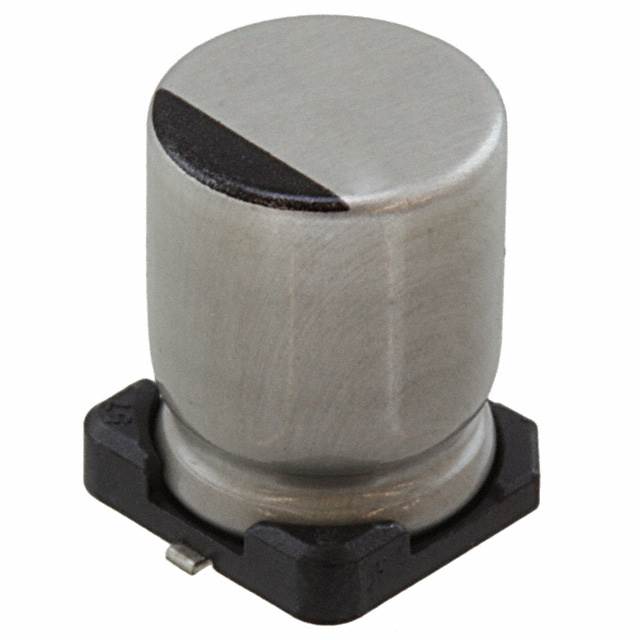

UWS1V101MCL1GS

UWS1V101MCL1GS is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 100UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UWS1V101MCL1GS

• Description：CAP ALUM 100UF 20% 35V SMD
• Series：UWS
• Mfr：Nichicon
• Package：Tape & Reel (TR)
• Capacitance：100 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：-
• Ratings：-
• Applications：High Temperature Reflow
• Ripple Current @ Low Frequency：175 mA @ 120 Hz
• Ripple Current @ High Frequency：227.5 mA @ 10 kHz
• Lead Spacing：-
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.413" (10.50mm)
• Surface Mount Land Size：0.327" L x 0.327" W (8.30mm x 8.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for UWS1V101MCL1GS
