VAOL-3MSBY2

LED Indication - Discrete Overview

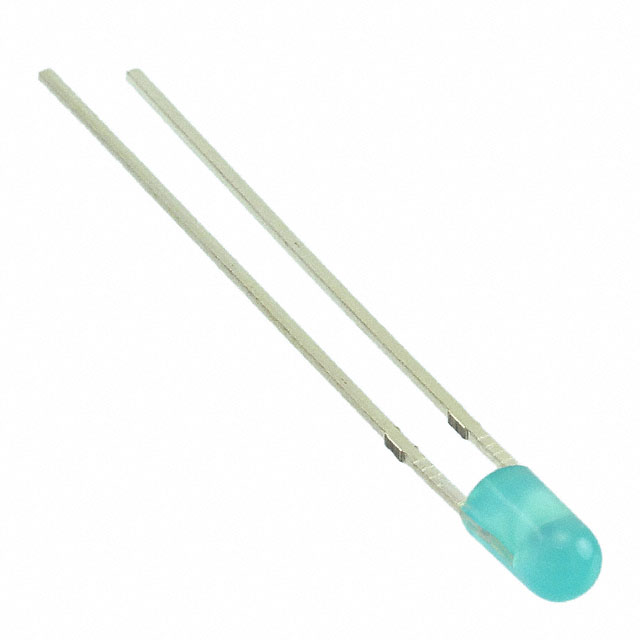

The VAOL-3MSBY2 is a high-power UV LED component manufactured by VCC, designed for ultraviolet applications. It operates at a peak wavelength of 385 nm and emits in the UVA spectrum. The device utilizes a T-1 (3 mm) dome lens package with a 30-degree viewing angle to direct light output efficiently. It supports surface mount installation styles and functions within an operating temperature range from -20°C to +80°C. This component is classified under high-power LEDs and is suitable for specialized industrial or scientific uses requiring precise UV emission.

LED Indication - Discrete Feature Summary

• Emits ultraviolet light at a specific 385 nm wavelength
• Features a T-1 dome lens package for directional light control
• Supports surface mount technology for automated assembly

LED Indication - Discrete Applications

• Industrial curing processes
• Scientific instrumentation
• UV inspection systems

LED Indication - Discrete Procurement Notes

Verify current availability status as this component may be subject to end-of-life restrictions or limited supply chains. Confirm RoHS compliance details through official manufacturer documentation before integration. Ensure that the specified operating temperature ranges align with your system's thermal management capabilities. Check for any specific handling requirements associated with high-power UV components during storage and assembly.

LED Indication - Discrete Selection Notes

Consider the 30-degree beam angle when designing optical systems to ensure adequate coverage for the target application. Evaluate the thermal dissipation requirements given the high-power classification of the LED. Verify compatibility with existing surface mount manufacturing processes. Assess whether the 385 nm wavelength meets the specific photochemical or photophysical requirements of the intended use case compared to other available UV spectra.

LED Indication - Discrete Part Context

This component belongs to the VCC UV LED product line, which focuses on ultraviolet emission technologies. The T-1 package format provides a standardized mechanical footprint for integration into various electronic assemblies. As a high-power variant, it differs from standard indicator LEDs by offering higher radiant flux for active illumination or processing tasks rather than simple status indication.

LED Indication - Discrete Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult VCC directly for potential obsolescence management or equivalent series recommendations.
