VSKY20401608-G4-08

Single Diodes Overview

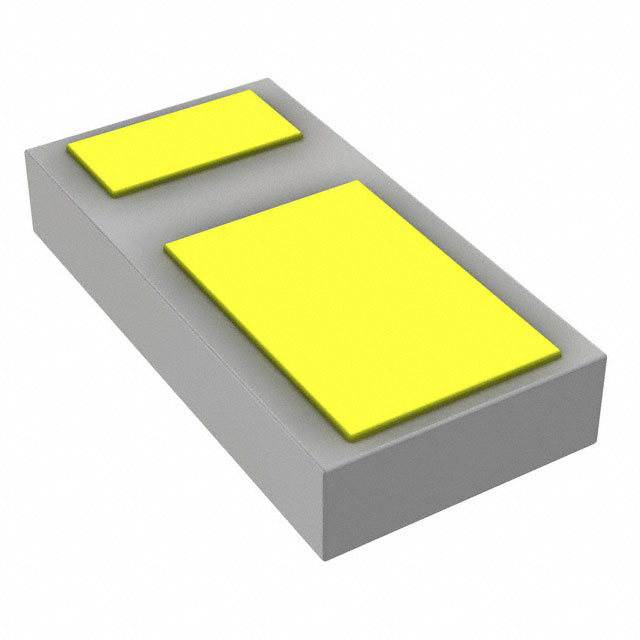

The VSKY20401608 is a surface-mount Schottky rectifier from Vishay Semiconductors, utilizing FlipKY® Gen 2 technology. It features a single circuit configuration in the CLP1608-2L package with dimensions of 1.6 mm x 0.8 mm x 0.31 mm. The device supports a maximum repetitive peak reverse voltage (VRRM) of 40 V and a maximum average forward rectified current (IF(AV)) of 2 A. Peak forward surge current reaches 28 A. Electrical characteristics include a typical forward voltage drop of 510 mV at 2.0 A and low reverse leakage current below 18 μA at 10 V.

Single Diodes Feature Summary

• FlipKY® Gen 2 surface-mount construction for high-speed switching applications
• Extremely compact physical profile suitable for space-constrained designs
• Low forward voltage drop to minimize conduction losses
• Minimal reverse leakage current for improved efficiency

Single Diodes Applications

• High-frequency power supply circuits
• DC/DC converter modules
• Reverse polarity protection in portable electronics

Single Diodes Procurement Notes

Verify component authenticity by cross-referencing the ordering code VSKY20401608-G4-08 against official Vishay documentation. Confirm that the package designation matches the CLP1608-2L footprint specifications. Ensure compliance requirements align with project material categorization standards before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a 40 V rating and 2 A continuous current capacity are required within a minimal board area constraint. Evaluate thermal performance based on the specified junction-to-ambient thermal resistance of 100 K/W on standard FR-4 substrates. Consider the low capacitance value for high-frequency signal integrity requirements.

Single Diodes Part Context

This device belongs to the FlipKY® Gen 2 series of surface-mount Schottky rectifiers manufactured by Vishay Semiconductors. The series emphasizes miniaturization through advanced flip-chip packaging techniques, enabling higher packing densities compared to traditional leaded or standard SMD diode packages.

Single Diodes Replacement Considerations

Consult official Vishay documentation for confirmed substitute part numbers. Verify that any replacement maintains identical electrical ratings, specifically the 40 V reverse voltage and 2 A forward current limits, as well as the specific CLP1608-2L package dimensions.

Single Diodes FAQ

What is the maximum operating junction temperature?

The maximum operating junction temperature is 125 °C.

What is the typical diode capacitance value?

The typical diode capacitance is 340 pF at 0 V reverse bias and 1 MHz frequency.
