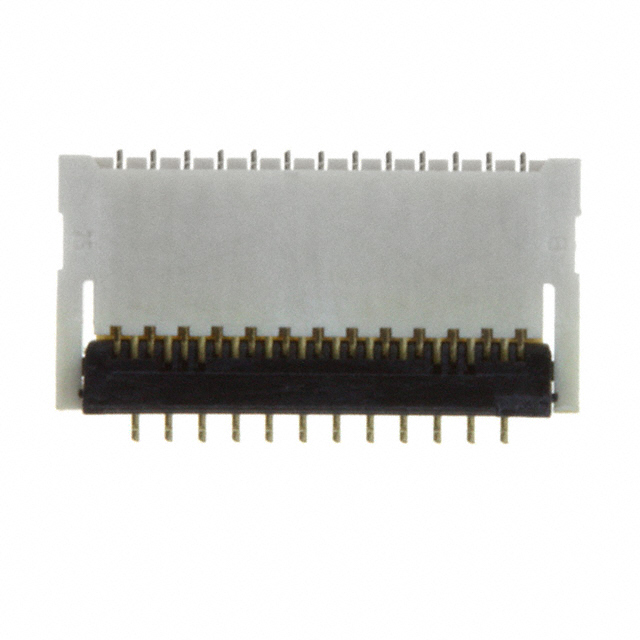

FFC, FPC (Flat Flexible) Connector Assemblies XF2B-2545-31A product image

XF2B-2545-31A

$2.38

Description：CONN FPC 25POS 0.3MM R/A
Series：XF2B
Mfr：Omron Electronics Inc-EMC Div
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7f1686e838b0 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XF2B-2545-31A is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is CONN FPC 25POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for XF2B-2545-31A

Description：CONN FPC 25POS 0.3MM R/A
Series：XF2B
Mfr：Omron Electronics Inc-EMC Div
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：25
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.083" (2.10mm)
Locking Feature：Rotary Lock, Backlock
Cable End Type：Straight
Contact Material：Copper Alloy
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material：Liquid Crystal Polymer (LCP), Halogen Free
Features：-
Voltage Rating：50V
Operating Temperature：-30°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for XF2B-2545-31A

XF2B-2545-31A
