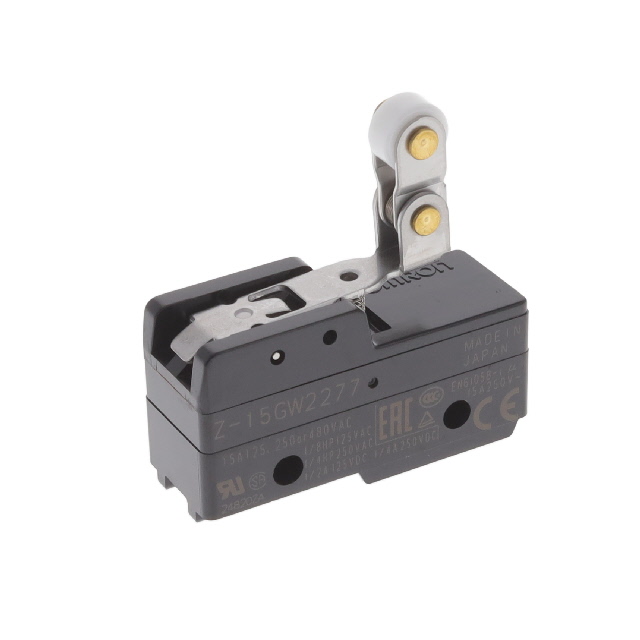

Limit Switches Z-15GW2277 product image

Z-15GW2277

$16.30

Description：SWITCH SNAP ACTION SPDT 15A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Tray

SKU:a3de7cc268b9 Category: Limit Switches Brand: Omron Automation and Safety

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Z-15GW2277 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is SWITCH SNAP ACTION SPDT 15A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for Z-15GW2277

Description：SWITCH SNAP ACTION SPDT 15A 125V
Series：Z
Mfr：Omron Automation and Safety
Package：Tray
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：15A (AC), 6A (DC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Roller
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Ingress Protection：IP00
Features：-
Operating Force：180gf
Release Force：50gf
Operating Position：1.625" (41.3mm)
Pretravel：-
Differential Travel：0.031" (0.8mm)
Overtravel：0.094" (2.4mm)
Operating Temperature：-25°C ~ 80°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for Z-15GW2277
