ZSS-108-09-S-D-1250

Headers, Male Pins Overview

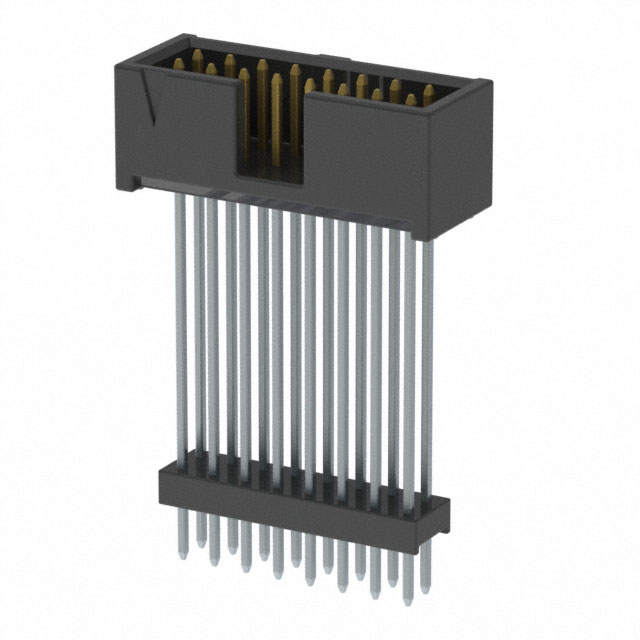

The ZSS-108-09-S-D-1250 is a vertical header connector from the Samtec Flex Stack ZSS series. It features a 0.100 inch (2.54 mm) pitch with 16 positions arranged in a dual row configuration. The connector utilizes square post contacts with gold plating for mating and tin plating for termination, constructed from phosphor bronze. Designed for through-hole mounting, it includes a four-wall shielded shroud and keying features to ensure proper alignment. The unit operates within a temperature range of -55°C to 125°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Elevated shroud design facilitates blind mating applications by accommodating height variations between boards.
• Flex Stack architecture allows for modified post height and body position adjustments in precise increments.
• Four-wall shielding provides electromagnetic interference protection and mechanical robustness during connection.

Headers, Male Pins Applications

• Blind mating connections between stacked printed circuit boards
• Board-to-board interconnects requiring elevated terminal strips
• High-density electronic assemblies needing precise positional adjustment

Headers, Male Pins Procurement Notes

Verify the specific insulation height and overall contact length against the detailed datasheet drawing before finalizing the design. Confirm that the through-hole termination method aligns with the manufacturing process capabilities. Ensure the keying feature matches the mating connector requirements to prevent misalignment during assembly.

Headers, Male Pins Selection Notes

Select this component when blind mating is required or when board stack-up heights vary significantly. The Flex Stack capability allows for fine-tuning the connection height without custom tooling. Verify that the 0.100 inch pitch fits the available board spacing and that the dual-row layout supports the necessary signal count.

Headers, Male Pins Part Context

This part belongs to the Flex Stack ZSS series, which specializes in elevated terminal strips. Unlike standard headers, these connectors are engineered to bridge gaps where precise board alignment cannot be guaranteed. The series offers customizable heights to accommodate diverse mechanical constraints in complex multi-layer PCB designs.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Designers should consult official Samtec resources for cross-referencing compatible alternatives if this specific configuration is unavailable.

Headers, Male Pins FAQ

What is the primary advantage of the Flex Stack design in this connector?

The Flex Stack design allows for modified post height and body position adjustments in small increments, enabling precise alignment even when there are slight variations in board thickness or stack-up height.

How does the connector handle electromagnetic interference?

The connector features a four-wall shielded shroud, which provides physical protection and helps mitigate electromagnetic interference during operation.
