ZSS-115-08-G-D-1148

$5.56

Description：CONN HDR .100" 30POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:d48faa24ca27 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ZSS-115-08-G-D-1148 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HDR .100" 30POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for ZSS-115-08-G-D-1148

Description：CONN HDR .100" 30POS
Series：Flex Stack, ZSS
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Elevated
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：30
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：-
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for ZSS-115-08-G-D-1148

ZSS-115-08-G-D-1148

Headers, Male Pins Overview

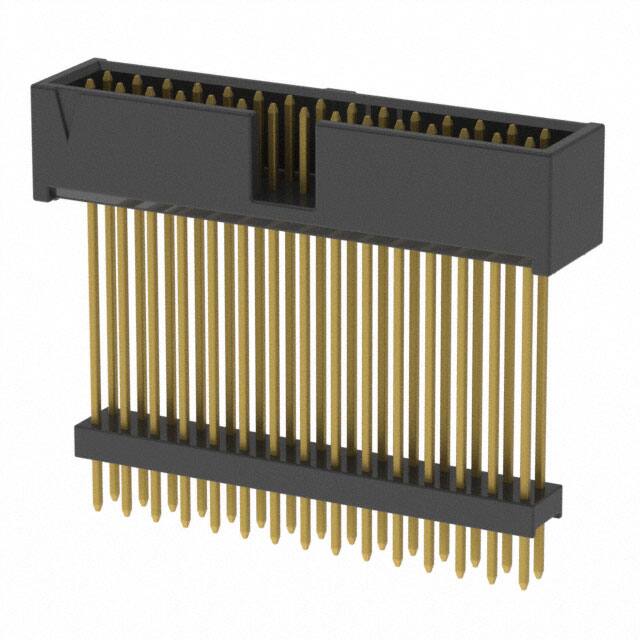

The ZSS-115-08-G-D-1148 is a board stacking connector manufactured by Samtec Inc. It features 30 contacts arranged in two rows with male, straight solder terminals. The connector utilizes phosphor bronze contacts finished with gold over nickel plating. Designed for through-hole installation, it operates within a temperature range of -55°C to +125°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Shrouded elevated terminal strip design
Keying slot for precise alignment
Gold over nickel contact plating

Headers, Male Pins Applications

Board-to-board interconnection
Stacked circuit assembly
General purpose electronic modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm exact pin count, row configuration, and termination style. Ensure compatibility with mating connectors and PCB layout requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a shrouded, elevated header with keying is required for board stacking applications. Confirm that the 2.54 mm pitch and straight solder tail format align with the target PCB design constraints.

Headers, Male Pins Part Context

This component belongs to the ZSS series of shrouded elevated terminal strips from Samtec. These headers are engineered for reliable board stacking and general-purpose interconnections, offering robust mechanical stability and electrical performance in compact form factors.
