1-770876-0

Headers, Male Pins Overview

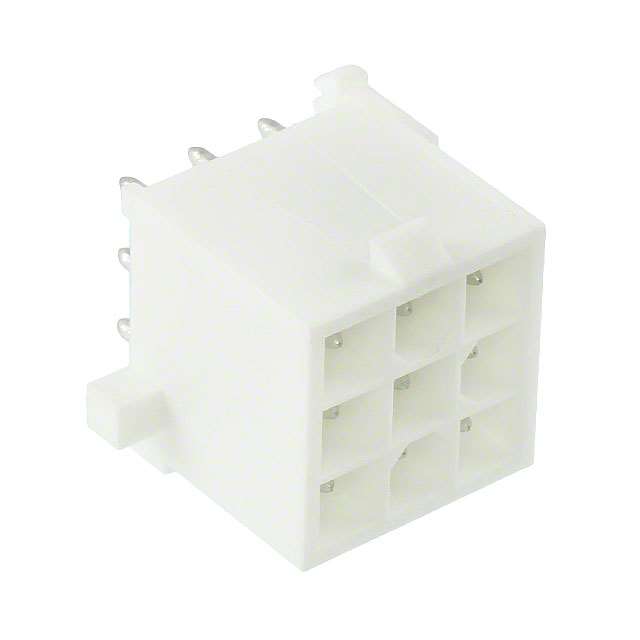

The 1-770876-0 is a 9-position vertical header assembly from the Mini-Universal MATE-N-LOK series by TE Connectivity AMP Connectors. Designed for through-hole mounting, this male connector utilizes a tin over nickel contact finish to ensure reliable electrical performance. The component features a 4.14mm pitch and is constructed with brass contacts housed in a durable insulating body. It serves as a combination line connector suitable for general-purpose applications requiring secure board-to-wire interconnections.

Headers, Male Pins Feature Summary

• Vertical orientation design facilitates efficient PCB layout and cable routing
• Male pin configuration ensures secure mating with corresponding socket connectors
• Tin over nickel plating provides corrosion resistance and stable conductivity

Headers, Male Pins Applications

• General purpose electronic equipment interconnects
• Board-to-wire wiring harness assemblies
• Industrial control system signal transmission

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 9-position configuration and vertical header style. Confirm that the tin over nickel contact finish aligns with environmental and soldering requirements. Ensure compatibility with the Mini-Universal MATE-N-LOK mating system before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a 9-position vertical header with a 4.14mm pitch is required. Consider the Mini-Universal MATE-N-LOK series for its established reliability in combination line connector applications. Evaluate the through-hole termination method against available PCB space and manufacturing capabilities.

Headers, Male Pins Part Context

This component belongs to the Mini-Universal MATE-N-LOK family, a widely recognized series of combination line connectors. The series is known for providing robust mechanical retention and electrical stability in various industrial and commercial environments. The 1-770876-0 specifically represents the 9-position variant within this extensive lineup.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 9-position headers within the Mini-Universal MATE-N-LOK series. Verify identical pitch, terminal count, and mounting orientation when evaluating alternative part numbers from the same manufacturer or compatible third-party sources.
