1-776087-4

Headers, Male Pins Overview

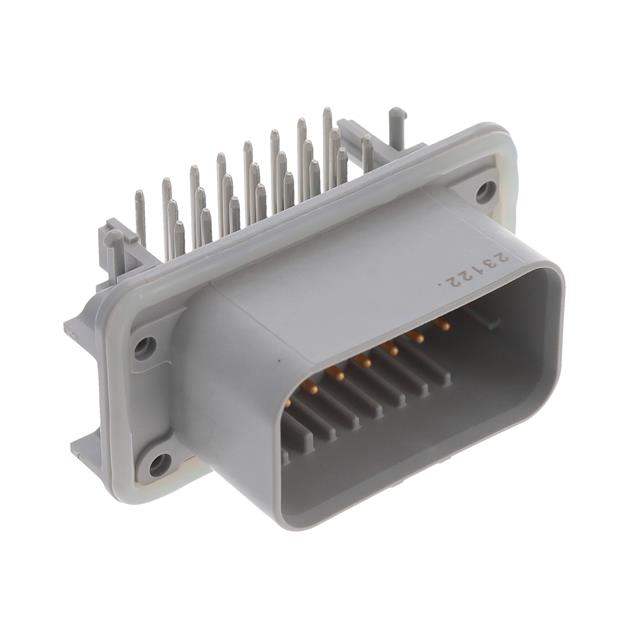

The TE Connectivity AMP Connectors part number 1-776087-4 is a PCB header from the AMPSEAL series. It features 23 positions arranged in a 3-row configuration with a pin (male) contact type. The connector utilizes panel mount installation and solder termination methods. Electrical ratings include a current capacity of 17A. The housing material is glass-filled polycarbonate (PBT), and contacts are brass with gold plating. Operating temperature ranges from -40°C to +125°C.

Headers, Male Pins Feature Summary

• Three-row header design for high-density signal routing
• Gold-plated brass contacts for reliable conductivity
• Panel mount style for secure chassis integration

Headers, Male Pins Applications

• Driver information systems
• Powertrain systems
• Convenience, safety and security systems
• Body and chassis systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color variations within the AMPSEAL family. Ensure compatibility with mating receptacles designed for 3-row headers. Confirm that the panel mount style aligns with the mechanical constraints of the target enclosure. Cross-reference the 17A rating against thermal management requirements in the final assembly.

Headers, Male Pins Selection Notes

Select this component when a high-current, multi-row header is required for automotive or industrial applications. The 17A rating supports significant power distribution compared to standard signal headers. The gold plating offers superior corrosion resistance over tin variants. Consider the physical dimensions of the 3-row layout to ensure adequate board space and mating clearance.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL series, a widely used line of automotive connectors manufactured by TE Connectivity. The series is known for robust performance in harsh environments. The 1-776087-4 variant specifically addresses the need for higher current handling and dense interconnection in vehicle body and chassis modules.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 23-position, 3-row AMPSEAL headers from TE Connectivity. Verify that any replacement maintains the same 17A current rating and panel mount style. Check for identical pin spacing and row alignment to ensure mechanical fit.
