1-776180-5

Headers, Male Pins Overview

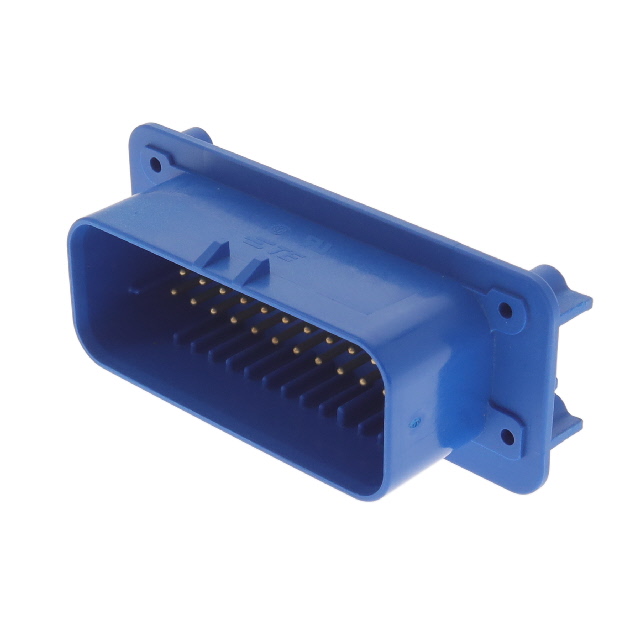

The 1-776180-5 is a right-angle, wire-to-board header connector from the AMPSEAL series by TE Connectivity AMP Connectors. It features 35 positions arranged in a 3-row configuration with a 4mm (0.157 inch) centerline. Designed for harsh environments, it utilizes through-hole solder termination and includes sealable contacts to protect against moisture and extreme temperatures. The connector is constructed with gold-plated contacts and is suitable for industrial and commercial transportation applications.

Headers, Male Pins Feature Summary

• Right-angle PCB header design for secure board mounting
• Sealable contact system providing protection against moisture and contaminants
• Gold-plated contacts ensuring reliable electrical performance
• Engineered to withstand extreme temperatures and harsh environmental conditions

Headers, Male Pins Applications

• Industrial equipment connectivity
• Commercial transportation systems
• Harsh environment automotive applications
• High-temperature underhood modules

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 35-position, 3-row configuration with a 4mm pitch. Confirm that the right-angle orientation and through-hole solder termination align with the PCB layout requirements. Ensure the sealable feature is necessary for the target application's environmental protection needs. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mating partner compatibility before procurement.

Headers, Male Pins Selection Notes

Select this component when high-density interconnection is required in space-constrained designs utilizing a 4mm grid. The right-angle form factor facilitates efficient board stacking or edge connections. Consider the sealable nature of the contacts if the operating environment involves humidity, dust, or chemical exposure. Validate that the through-hole soldering process is compatible with the assembly line capabilities and thermal profiles.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL family, which is engineered for robust performance in demanding sectors such as automotive and industrial machinery. The series is known for its durability and ability to maintain signal integrity under stress. As an AMP product, it leverages decades of expertise in connector technology, ensuring compatibility with other components within the broader AMP ecosystem for scalable system design.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other 35-position, 3-row AMPSEAL headers with matching 4mm pitch and right-angle orientation. Verify that any alternative maintains the same sealable contact specification and through-hole termination style. Ensure the replacement part supports the same current and voltage ratings required for the specific circuit application.
