1-794633-8

Headers, Male Pins Overview

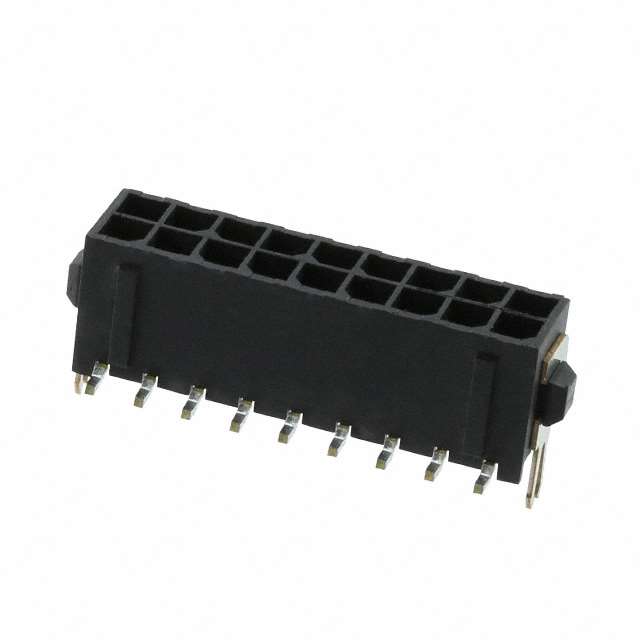

The 1-794633-8 is a surface mount header connector from the Micro MATE-N-LOK series by TE Connectivity AMP Connectors. It features an 18-position configuration with a 0.118-inch (3.00mm) mating pitch and row spacing. The connector utilizes square contact shapes and is designed for board-to-cable or wire applications. It supports termination via soldering and includes a shrouded four-wall housing to ensure proper alignment and protection during assembly.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Shrouded four-wall housing for alignment
• Square contact shape for secure mating

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized TE Connectivity channels. Confirm RoHS compliance status against current regulatory requirements. Ensure storage conditions maintain integrity prior to reflow soldering processes.

Headers, Male Pins Selection Notes

Select this component for high-density surface mount applications requiring reliable signal transmission. Evaluate thermal profiles during soldering to prevent damage to the polyamide insulation. Verify pin count compatibility with mating cable assemblies before integration.

Headers, Male Pins Part Context

This part belongs to the Micro MATE-N-LOK family, known for compact rectangular connectors. It serves as a surface mount variant within the broader 794633 product line, offering alternative mounting solutions compared to through-hole counterparts.

Headers, Male Pins Replacement Considerations

Direct substitute: 794631-8. Note that 794631-8 is a through-hole header, not surface mount. Verify mechanical fit and soldering process compatibility when substituting.
