22142084

Headers, Receptacles, Female Sockets Overview

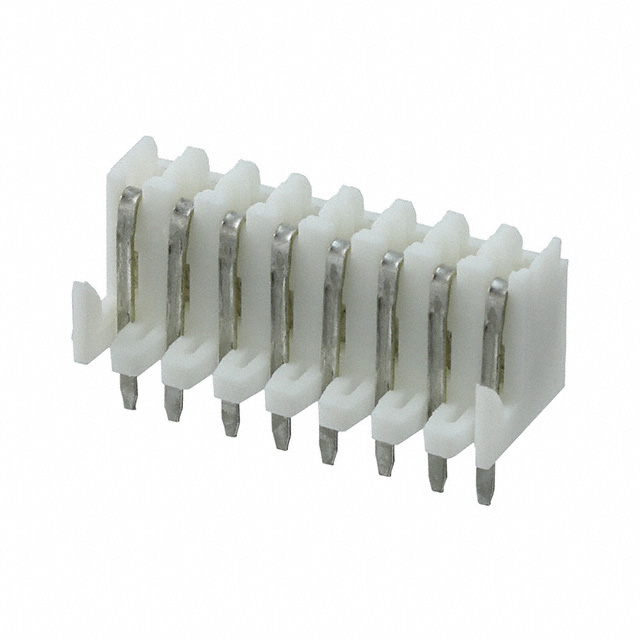

The Molex 22142084 is an 8-position receptacle connector from the KK 254 series, designed for through-hole PCB mounting. It features a 2.54mm (0.100 inch) pitch and utilizes bottom entry orientation for wire-to-board connections. The contacts are plated with tin to ensure reliable signal transmission. Rated for 500V voltage, this end-to-end stackable header supports standard industrial interconnect applications requiring robust mechanical stability.

Headers, Receptacles, Female Sockets Feature Summary

• End-to-end stackable design allows for compact multi-row configurations
• Bottom entry orientation facilitates specific PCB layout requirements
• Through-hole solder termination ensures secure board attachment

Headers, Receptacles, Female Sockets Applications

• Industrial control panel wiring
• Consumer electronics internal connections
• Data communication equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify part authenticity by checking the official Molex datasheet specifications against the received component markings. Ensure the supplier provides traceability documentation confirming the 22-14-2084 designation. Confirm that the tin plating integrity matches the 4455 series standards before integration into production lines.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, through-hole receptacle with bottom entry is required for 8-channel connections. The 2.54mm pitch suits general-purpose signaling and power distribution where space constraints allow standard spacing. Consider the stackable feature if multiple rows are needed in a single footprint.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the KK 254 family, a widely used line of headers and housings known for reliability in commercial and industrial environments. The series offers various pin counts and orientations, making it a versatile solution for diverse electronic assembly needs across automotive and consumer sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes within the KK 254 series include other 8-position bottom-entry receptacles such as 22-14-2086 or 22-14-2088, provided they match the same pitch and stacking capabilities. Verify mating housing compatibility before substitution.
