22152056

Headers, Receptacles, Female Sockets Overview

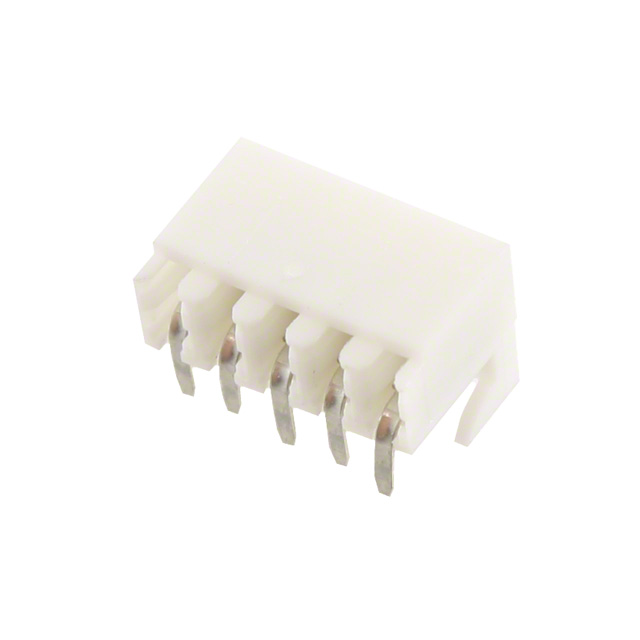

The Molex 22152056 is a KK 254 PC Board Connector receptacle designed for board edge and through-hole mounting. It features a right-angle configuration with end-to-end stackability, facilitating compact vertical assembly in electronic systems. The connector supports five circuits and utilizes tin (Sn) plating on the contact surfaces to ensure reliable electrical conductivity and corrosion resistance. This component belongs to the KK 254 series, which is widely recognized for its versatility in general-purpose interconnect applications requiring secure board-to-board or cable-to-board connections.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle design enables efficient space utilization in dense PCB layouts
• End-to-end stackable architecture supports multi-layer vertical integration
• Tin-plated contacts provide durable electrical interfaces for signal transmission

Headers, Receptacles, Female Sockets Applications

• Board edge interconnects in industrial control modules
• Through-hole mounting in consumer electronics assemblies
• Vertical stacking configurations in telecommunications hardware

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the ordered part matches the exact KK 254 series designation and five-circuit count. Confirm right-angle orientation and through-hole termination style align with the target PCB footprint. Ensure tin plating specifications meet environmental compliance requirements for the intended deployment region. Cross-reference manufacturer documentation to validate active status and availability before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when right-angle board edge mounting is required alongside vertical stacking capabilities. The five-circuit capacity suits moderate-density signal routing needs. Tin plating offers a cost-effective solution for standard operating environments. Evaluate mechanical constraints to ensure the through-hole profile fits within the enclosure height limitations of the final product design.

Headers, Receptacles, Female Sockets Part Context

This component is part of the broader KK 254 family, known for standardized 2.54mm pitch connectivity. It serves as a fundamental building block for modular electronic designs where reliable through-hole attachment and flexible stacking options are prioritized. The right-angle form factor distinguishes it from straight-mount variants, offering specific layout advantages for constrained spatial arrangements.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain the 2.54mm pitch, five-circuit count, right-angle orientation, and through-hole termination. Verify compatibility with existing PCB silkscreen and drill patterns. Alternative parts should offer equivalent tin plating thickness and mechanical retention strength to ensure performance parity in the original application context.
