22162100

$1.54

Description：CONN RCPT 10P 0.1 GOLD EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray

SKU:195e2bddf432 Category: Headers, Receptacles, Female Sockets Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22162100 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 10P 0.1 GOLD EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22162100

Description：CONN RCPT 10P 0.1 GOLD EDGE MNT
Series：KK254, 4455
Mfr：Molex
Package：Tray
Connector Type：Receptacle
Contact Type：Female, Cat Ear
Style：Board to Board or Cable
Number of Positions：10
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Insulation Color：White
Insulation Height：0.185" (4.70mm)
Contact Length - Post：0.132" (3.35mm)
Operating Temperature：-40°C ~ 80°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Hooks
Current Rating (Amps)：2.5A
Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22162100

22162100

Headers, Receptacles, Female Sockets Overview

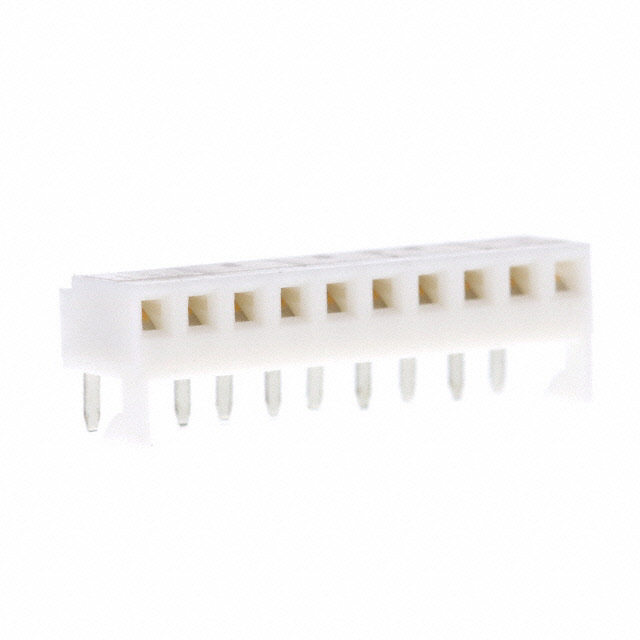

Molex part number 22162100 is a 10-position receptacle connector from the KK254 series, designed for edge-mount PCB installation. It features a 0.100 inch (2.54mm) pitch and utilizes through-hole termination with right-angle orientation. The contacts are gold-plated on the mating interface and tin-plated on the tail, supporting a rated current of 2.5A and voltage of 250VAC. The housing is white polyamide (PA/nylon) with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

Edge-mount design with push-pull locking mechanism for secure board retention
Gold-plated female cat-ear contacts ensure reliable signal transmission
Right-angle through-hole termination facilitates compact PCB layout

Headers, Receptacles, Female Sockets Applications

Automotive electronic systems
General purpose industrial equipment
Medical device circuitry
Telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact Molex part number against official datasheets to confirm pin count, plating specifications, and mounting style. Ensure compatibility with mating header connectors regarding pitch and locking mechanism. Check RoHS compliance status and material safety data sheets for specific project requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 10-position edge-mount solution is required with a standard 2.54mm pitch. Consider the right-angle form factor for space-constrained vertical installations. Verify that the 2.5A current rating and 250VAC voltage limit meet the circuit's electrical demands. Confirm that the push-pull locking feature aligns with the assembly process and vibration environment.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the KK254 series, a widely used line of rectangular interconnects by Molex. The series offers various configurations including different pin counts, contact materials, and mounting styles. It is engineered for general-purpose applications requiring robust mechanical stability and consistent electrical performance across diverse environmental conditions.
