22285220

$0.63

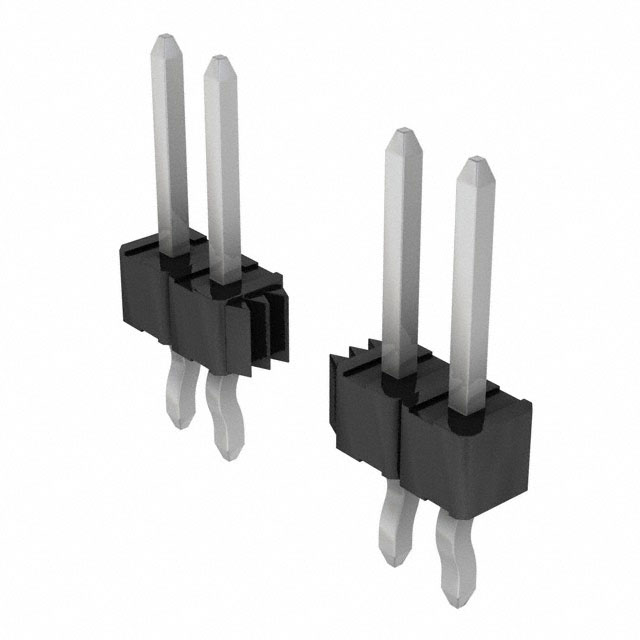

Description：CONN HEADER VERT 22POS 2.54MM
Series：KK254, 42375
Mfr：Molex
Package：Bulk

SKU:66f686442af8 Category: Headers, Male Pins Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22285220 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER VERT 22POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 22285220

Description：CONN HEADER VERT 22POS 2.54MM
Series：KK254, 42375
Mfr：Molex
Package：Bulk
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：22
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.240" (6.10mm)
Contact Length - Post：0.135" (3.43mm)
Overall Contact Length：0.465" (11.81mm)
Insulation Height：0.090" (2.29mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：-
Insulation Material：Polyamide (PA), Nylon, Glass Filled
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 22285220

22285220

Headers, Male Pins Overview

Molex part number 22285220 is a crimping tool designed for terminal attachment. It functions as a hand crimp tool specifically engineered for .093 inch terminals and 22 AWG wire sizes. The device facilitates secure electrical connections by mechanically deforming the terminal around the conductor, ensuring reliable contact integrity within specified industrial and commercial wiring applications.

Headers, Male Pins Feature Summary

Designed for precise mechanical crimping of specific terminal geometries
Engineered for use with 22 AWG conductors
Optimized for .093 inch terminal dimensions

Headers, Male Pins Applications

Wire harness assembly
Cable termination
Electrical panel wiring

Headers, Male Pins Procurement Notes

Verify that the specific tool variant matches the required terminal width and wire gauge before acquisition. Confirm compatibility with existing production equipment and ensure the tool meets necessary safety standards for the intended operational environment.

Headers, Male Pins Selection Notes

Select this tool when working with .093 inch terminals and 22 AWG wires. Ensure the application requires manual crimping capabilities and that the terminal type aligns with the tool's specific design specifications for optimal performance.

Headers, Male Pins Part Context

This component belongs to Molex's range of hand tools used in connector assembly. It supports the creation of reliable electrical joints by providing the necessary force and alignment for crimping operations on specified terminal types and wire gauges.
