2404131-1

Edgeboard Connectors Overview

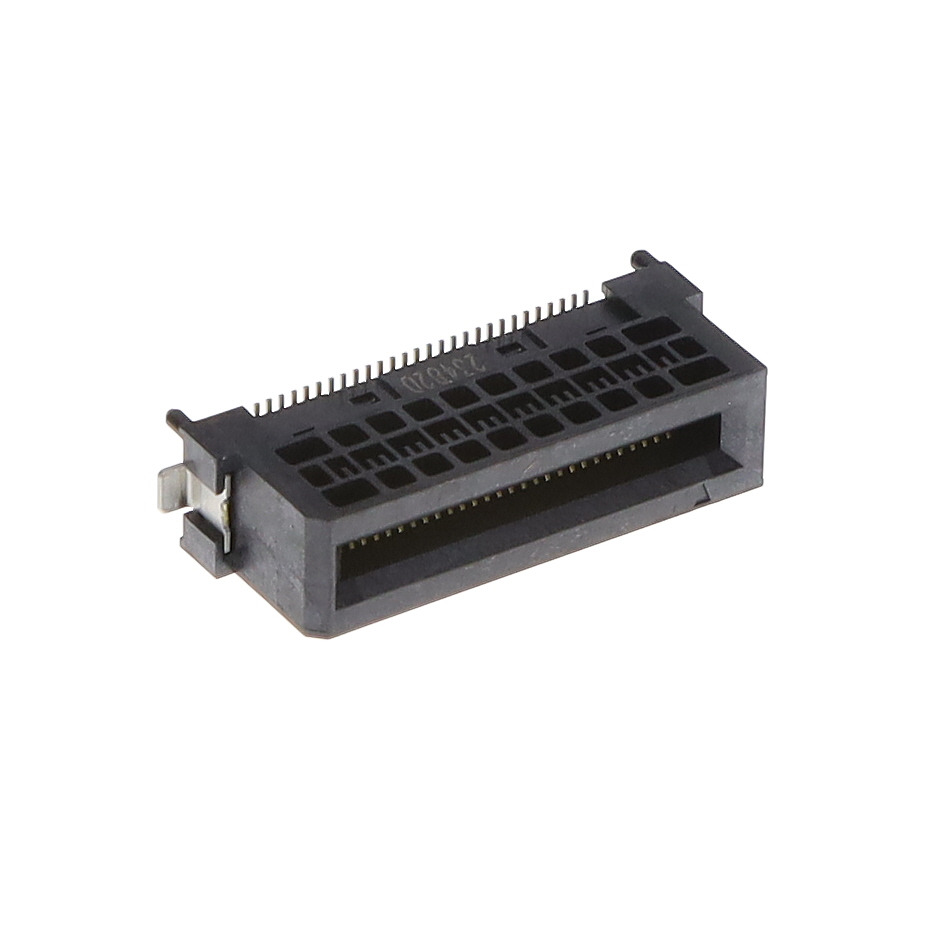

The 2404131-1 is a vertical receptacle assembly manufactured by TE Connectivity AMP Connectors. It features a 56-pin configuration designed for general-purpose applications. The component serves as a connector housing or assembly, providing the structural interface for mating with corresponding pins or sockets. As a receptacle type, it accepts male contacts to establish electrical continuity within a circuit board or system architecture.

Edgeboard Connectors Feature Summary

• Vertical orientation design for standard board mounting
• 56-position capacity for high-density interconnects
• General-purpose receptacle assembly construction

Edgeboard Connectors Applications

• Industrial control systems requiring multi-pin signal routing
• General electronic equipment backplanes
• Custom harness assemblies needing vertical receptacle interfaces

Edgeboard Connectors Procurement Notes

Verify the exact mating partner specifications before procurement. Confirm that the required pin count and orientation match the 56-pin vertical receptacle design. Ensure compatibility with the specific contact types intended for use within this assembly. Check current availability status as lead times may vary.

Edgeboard Connectors Selection Notes

Select this part when a vertical, 56-position receptacle is required for general-purpose connections. Evaluate the mechanical fit for vertical mounting on the target PCB. Consider the overall height and clearance requirements associated with the vertical form factor. Ensure the application does not require specialized locking mechanisms beyond the standard assembly design.

Edgeboard Connectors Part Context

This component belongs to the broader family of TE Connectivity AMP Connectors, which provide interconnect solutions for transmitting data, power, and signals. The 2404131-1 specifically addresses needs for vertical receptacle assemblies in general-purpose environments, differing from angled or horizontal variants within the same product line.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify if any updated revisions of the 2404131-1 exist directly from the manufacturer before considering alternatives.
