3-5147490-2

Edgeboard Connectors Overview

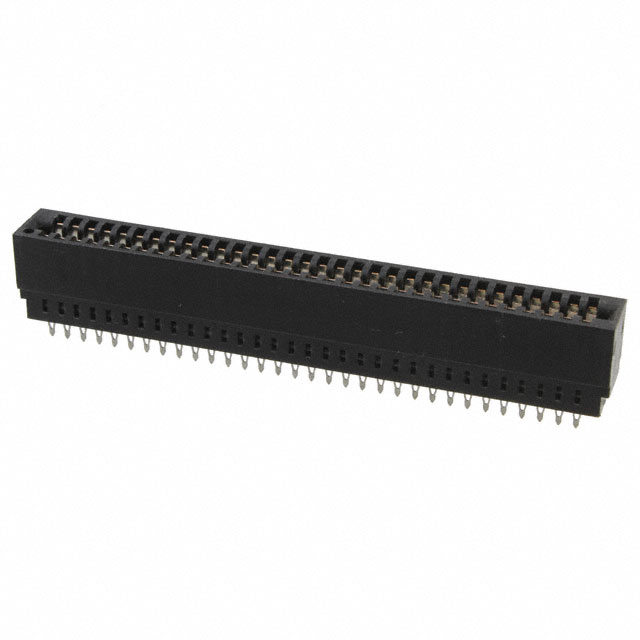

The TE Connectivity AMP Connectors part number 3-5147490-2 is a standard card edge connector belonging to the Next Gen PACE series. It features a dual female configuration with 64 positions arranged in two rows, providing a total of 64 contacts for board-to-board interconnection. The connector utilizes a 0.100-inch (2.54mm) pitch and is designed for straight mounting orientation. Electrical termination is achieved through a solder end-type, ensuring secure attachment to the mating PCB. The contact surfaces are finished with gold plating to enhance conductivity and corrosion resistance.

Edgeboard Connectors Feature Summary

• Dual female card edge design for reliable vertical board connections
• Gold-plated contacts ensure stable signal transmission and durability
• Standard 0.100 inch pitch accommodates common PCB trace widths

Edgeboard Connectors Applications

• High-density electronic assembly interconnects
• Industrial control system circuit boards
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer documentation may undergo revisions. Confirm that the 64-position dual-row specification matches your PCB footprint requirements exactly. Ensure compatibility with the mating single-edge or double-edge card components. Check for any recent product change notifications regarding material composition or plating thickness updates.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-contact-count interface is required for vertical stacking applications. The dual female style allows connection from both sides of a substrate if necessary. Consider the mechanical retention provided by the solder termination during vibration-prone operations. Evaluate the thermal dissipation capabilities inherent in the gold-plated copper alloy contacts for power distribution needs.

Edgeboard Connectors Part Context

This connector belongs to the Next Gen PACE series, an evolution of standard card edge technologies focused on improved reliability and density. The AMP brand under TE Connectivity provides extensive validation for harsh environments. This specific model represents a mid-range position count within the series, balancing space constraints with connectivity requirements.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 64-position, dual-female, 2.54mm pitch specifications. Verify that alternative vendors offer identical gold plating thickness and housing material properties. Cross-reference pinout orientations to prevent mating errors. Ensure the replacement maintains the same straight mounting angle and solder termination style.
