302-006-356-201

Edgeboard Connectors Overview

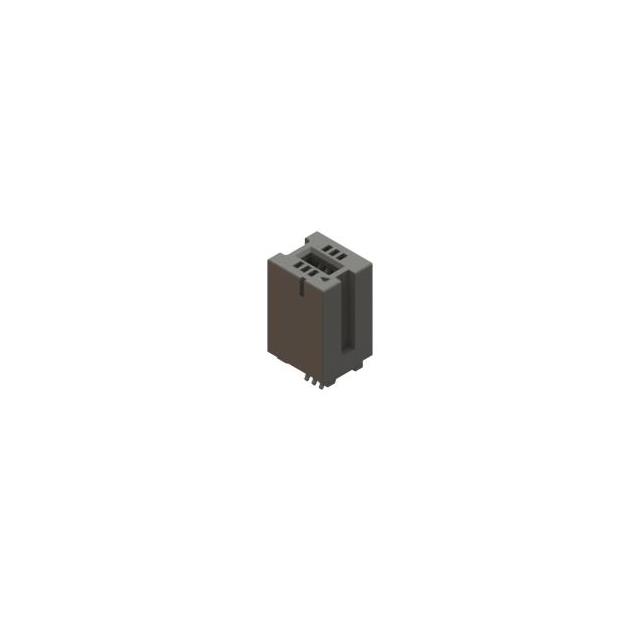

The EDAC Inc. 302-006-356-201 is a standard card edge connector from the 302 series, designed for dual-edge board applications. It features six female contacts with gold flash plating and a contact spacing of 0.050 inches (1.27mm). The housing is black, constructed from polyamide (PA66), and supports board thicknesses ranging from 0.051 to 0.071 inches (1.30mm to 1.80mm). This component utilizes a cantilever contact type and mounts via board edge or straddle mount methods.

Edgeboard Connectors Feature Summary

• Dual-row configuration with six female contacts for reliable signal transmission
• Gold flash plated cantilever contacts ensure low contact resistance and durability
• Polyamide (PA66) housing provides structural stability and thermal resistance
• Straddle mount design facilitates secure installation on specified board edges

Edgeboard Connectors Applications

• Electronic modules requiring dual-edge card insertion
• Industrial control systems utilizing standard card edge interfaces
• Communication equipment with compact interconnect needs
• Medical devices requiring reliable board-to-board connections

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm that the specific suffix matches the required contact count and plating specifications. Ensure compatibility with target board thickness and mounting style requirements. Cross-reference RoHS compliance status if environmental regulations apply to the end application.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge card interface with six positions is required. The 0.050-inch pitch suits high-density applications needing precise alignment. Verify that the straddle mount method aligns with the mechanical design constraints of the host system. Consider the PA66 material properties for expected operating temperature ranges.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in standard card edge connectors. The series offers various pin counts and spacing options to accommodate diverse electronic assembly needs. The 302-006-356-201 specifically addresses applications requiring a compact, six-position dual-edge solution with robust electrical performance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the specific cantilever contact geometry or housing dimensions. Ensure any replacement maintains the same 0.050-inch pitch and dual-edge compatibility.
