305-014-500-508

Edgeboard Connectors Overview

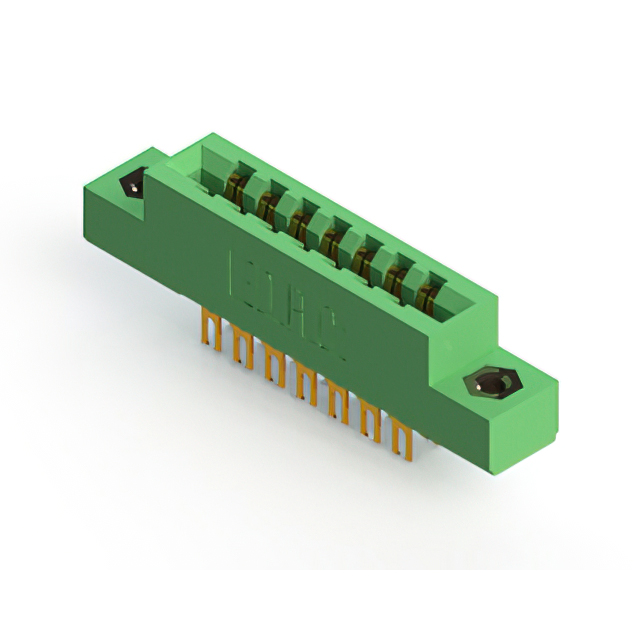

The EDAC Inc. 305-014-500-508 is a dual-edge female card edge connector from the 305 series, designed for panel and through-hole mounting. It features 14 positions with a 0.156-inch (3.96mm) pitch across two rows. The contacts are made of copper alloy with gold plating, suitable for non-specified dual-edge cards. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides thermal stability
• Panel mount design with solder lug termination for robust installation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and flange dimensions. Ensure compatibility with target PCB hole patterns and panel cutouts. Confirm RoHS compliance status against current manufacturer declarations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Verify that the mating card thickness falls within the specified range. Consider the operating temperature range and current rating requirements for the specific application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles. The 305-014 variant specifically provides 14 positions, balancing connectivity density with mechanical stability for standard industrial applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series parts for different pin counts. Verify dimensional compatibility with existing panel mounts. Check electrical ratings against alternative suppliers' offerings if supply chain constraints exist.
