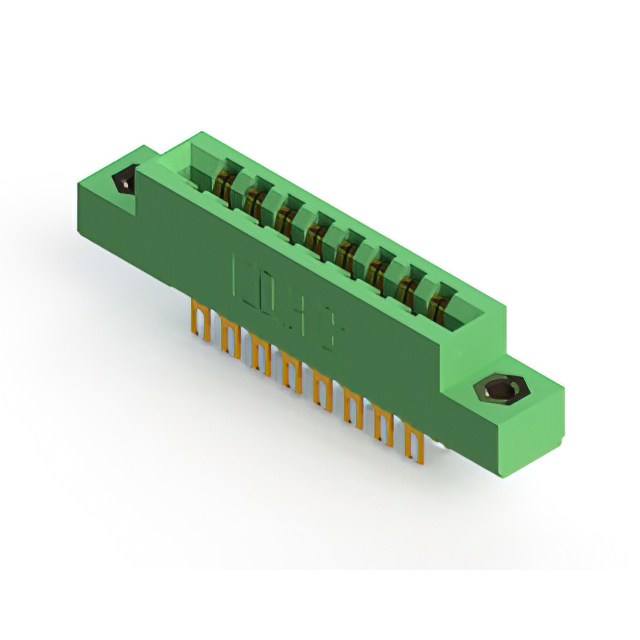

305-016-500-207

$6.85

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:0df4253ab629 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-016-500-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-016-500-207

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-016-500-207

305-016-500-207

Edgeboard Connectors Overview

The EDAC Inc. 305-016-500-207 is a standard card edge connector featuring 16 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic housing, rated for 5 A current and 1800 VACrms insulation. Designed for vertical panel mounting, it accepts between-contact and in-contact polarizing keys. The unit supports solder lug termination and operates within a temperature range of -40°C to +105°C, ensuring reliable performance in industrial applications.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure board alignment
Provides high voltage isolation capability with 1800 VACrms rating
Features gold-plated contacts for durable signal transmission

Edgeboard Connectors Applications

Industrial control systems requiring polarized connections
High-voltage interface modules
Panel-mounted electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific contact plating thickness and material composition against the official datasheet before integration. Confirm that the polarizing key requirements match your PCB design constraints. Ensure the thermal rating aligns with your operational environment limits. Cross-reference the termination style with your assembly process capabilities.

Edgeboard Connectors Selection Notes

Choose this component when polarized connection stability is critical for system integrity. The 1800 VACrms rating makes it suitable for high-voltage environments where standard connectors may fail. Verify that the 3.96 mm pitch matches your board layout requirements. Consider the vertical panel mount style for space-constrained enclosures.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent electrical characteristics and mechanical dimensions. It is designed for robust industrial use cases requiring reliable interconnect solutions.
