305-018-555-201

Edgeboard Connectors Overview

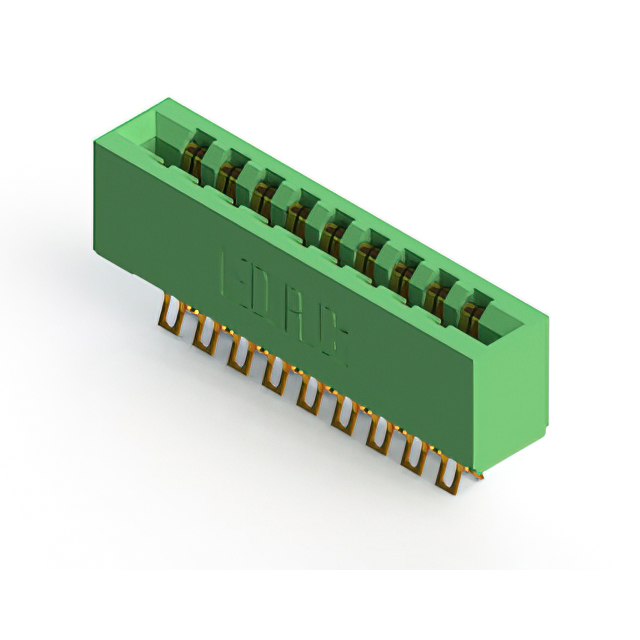

The EDAC Inc. 305-018-555-201 is a standard card edge connector receptacle featuring 18 positions with a 3.96 mm pitch. Designed for panel mounting, it utilizes gold-plated copper alloy contacts and solder lug termination. The unit supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. It accommodates board thicknesses of 1.57 mm and includes two rows of contacts.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Solder lug termination facilitates robust panel mounting
• Thermoplastic insulation provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB or panel thickness requirements before procurement. Cross-reference RoHS compliance status with current manufacturer declarations to meet regulatory standards for your region.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge receptacle with 18 positions is required for panel-mounted applications. The 3.96 mm pitch and 5 A rating suit moderate-density signal routing. Confirm that the solder lug termination style aligns with the assembly process and mechanical constraints of the host enclosure design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-018-555-201 specifically addresses needs for 18-position dual-edge connections in industrial environments requiring durable thermoplastic housing and gold-plated contacts.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or mounting angles. Verify that alternative parts maintain the same 3.96 mm pitch and 1.57 mm board thickness compatibility to ensure mechanical fit.
