305-020-500-508

Edgeboard Connectors Overview

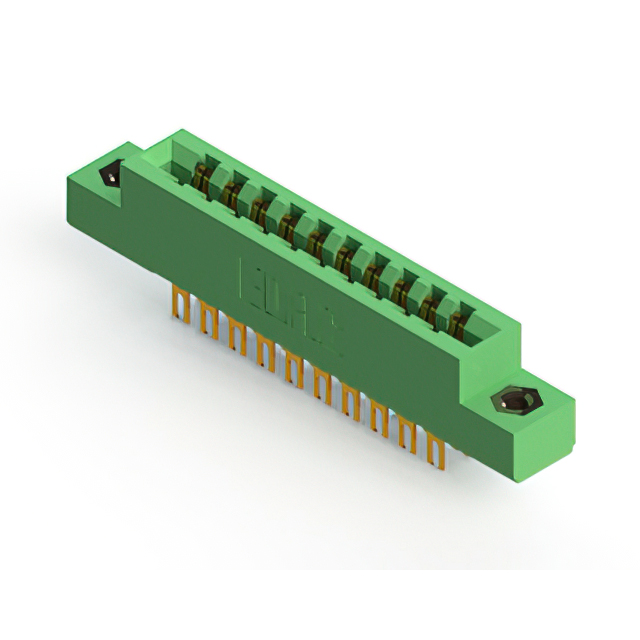

The EDAC Inc. 305-020-500-508 is a standard card edge connector featuring 20 positions arranged in a dual row configuration. It utilizes a contact spacing of 3.96 mm (0.156 inches) and accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). The component employs gold-plated copper alloy contacts to ensure reliable electrical performance. Designed for panel mounting, this vertical header offers a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The insulator body is constructed from thermoplastic material, providing structural integrity and an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female connector design for high-density signal transmission
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Vertical panel mount installation style for secure board integration
• Thermoplastic insulator body supporting standard PCB thicknesses

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Computing hardware module interfaces
• Test and measurement instrument connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness, termination type, and housing color variations. Ensure compatibility with target PCB edge guide tolerances and mating connector specifications before finalizing procurement orders. Cross-reference manufacturer datasheets for updated environmental compliance status.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 20-position interface is required for vertical panel mounting applications. Confirm that the 3.96 mm pitch aligns with the target card edge geometry and that the 1.57 mm board thickness specification matches the design constraints. Evaluate thermal requirements against the specified operating temperature range and current rating limits.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, characterized by a .156 inch contact spacing. The series provides various position counts and mounting configurations for diverse electronic assembly needs. The 305-020-500-508 variant specifically addresses applications requiring a compact, dual-row header solution with robust mechanical and electrical specifications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives within the 305 series or cross-reference with industry-standard equivalents. Verify pin-to-pin compatibility, dimensional tolerances, and electrical ratings before implementing any substitute components in existing designs.
