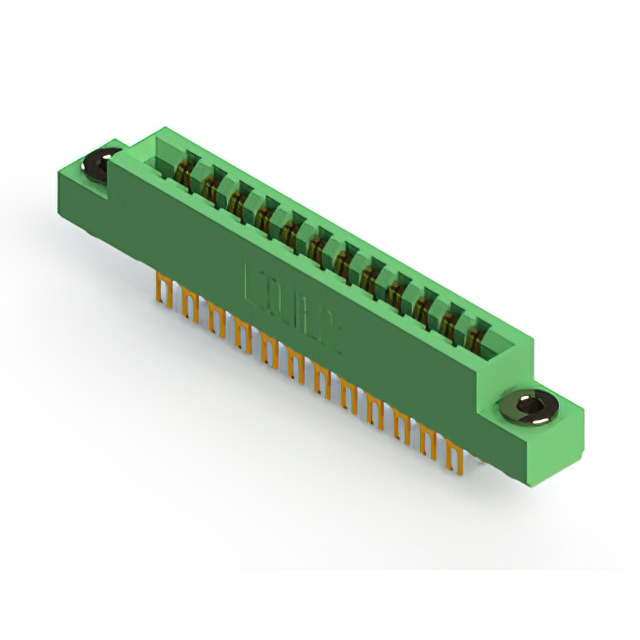

305-024-500-203

$7.45

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:03489d1ebb29 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-024-500-203 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-024-500-203

Description：CONN EDGE DUAL FMALE 24POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：24
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-024-500-203

305-024-500-203

Edgeboard Connectors Overview

The EDAC 305-024-500-203 is a standard card edge connector featuring 24 positions with a 3.96 mm (0.156 inch) contact spacing and dual rows. Designed for panel mounting, it utilizes solder eyelet termination to secure connections. The unit accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are constructed from copper alloy and finished with gold plating to ensure reliable conductivity. It supports a continuous current rating of 5 A and withstands 1800 VACrms dielectric voltage.

Edgeboard Connectors Feature Summary

Accepts between-contact and in-contact polarizing keys for secure alignment
Features a low-profile insulator body made from high-temperature thermoplastic polyester
Provides robust electrical isolation with an insulation resistance of 5 GOhms

Edgeboard Connectors Applications

Industrial control systems requiring secure board-to-panel interconnects
Telecommunications equipment utilizing standardized card edge interfaces
Test and measurement instrumentation needing reliable signal transmission

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange configuration. Ensure the target application matches the specified 1.57 mm board thickness limit. Confirm compliance with RoHS directives if required by project specifications. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 24-position interface is required for vertical panel mounting. The 3.96 mm pitch suits applications needing moderate density without excessive footprint constraints. Verify that the 5 A current rating meets the system's power distribution requirements. Consider the gold-plated contacts for environments demanding high corrosion resistance and stable contact impedance over time.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and termination options. The series is designed for general-purpose card edge applications where reliability and ease of installation are priorities. Components within this family share common dimensional standards and material properties, ensuring interchangeability across different position variants while maintaining consistent performance characteristics.
