305-058-500-502

Edgeboard Connectors Overview

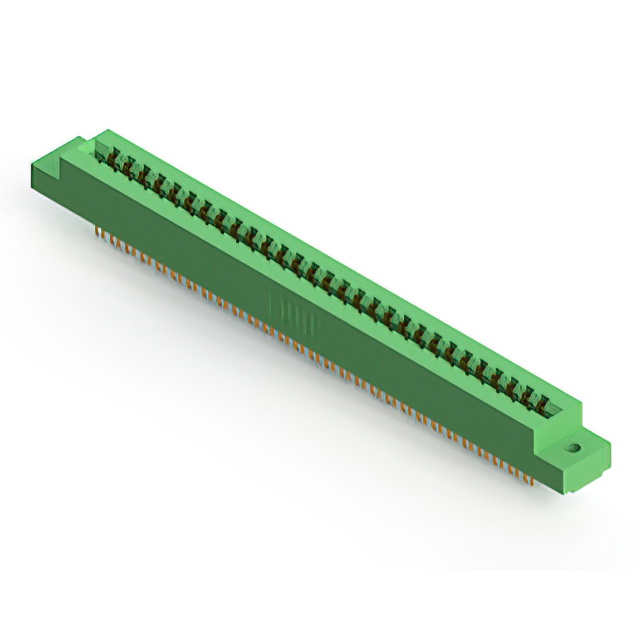

The EDAC Inc. 305-058-500-502 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 58 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The connector utilizes female contacts made of copper alloy with gold plating and employs a solder pin termination method. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic material, ensuring durability for panel mount installations.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for secure dual-edge board mating
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity and insulation
• Solder pin termination facilitates robust PCB mounting

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics modules needing durable connectors
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and flange characteristics. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the part number with authorized distributors to confirm authenticity and availability status.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with 58 positions and a 3.96 mm pitch is required. Consider the 5 A current rating and operating temperature range for environmental suitability. Verify that the solder pin termination aligns with the assembly process and that the panel mount style fits the mechanical design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in various electronic applications. The series offers multiple position counts and termination options to accommodate different design needs. The 305-058-500-502 specifically addresses requirements for dual-edge connections with a moderate pin count.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for alternative part numbers with similar specifications. Verify that any substitute maintains the same pitch, row count, and termination type to ensure mechanical and electrical compatibility.
