305-058-520-558

Edgeboard Connectors Overview

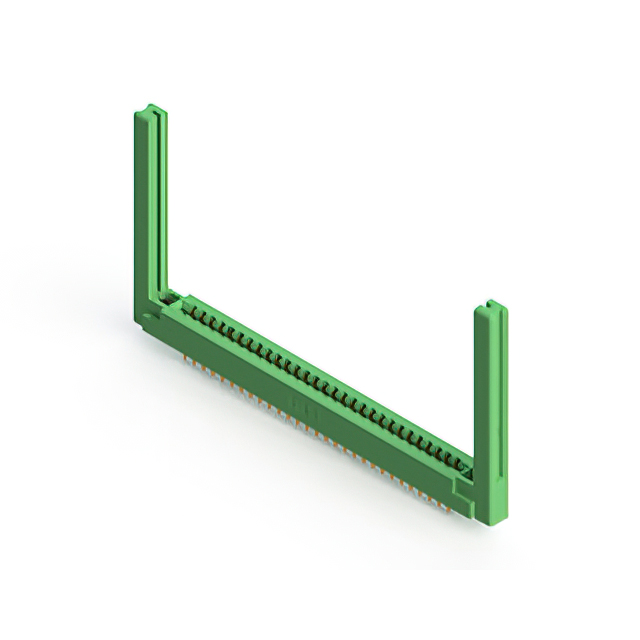

The EDAC Inc. 305-058-520-558 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 58 positions with a 3.96 mm pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and includes a current rating of 5 A. It employs through-hole solder termination for secure attachment and is housed in green thermoplastic material. This component is rated for operation within a temperature range of -40 C to +105 C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration accommodates double-sided circuit boards
• Through-hole solder termination provides mechanical robustness
• Gold-plated contacts ensure reliable electrical performance

Edgeboard Connectors Applications

• Vibration-prone electronic assemblies
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against your design requirements before procurement. Confirm that the housing color and insulation resistance meet your environmental standards. Ensure compatibility with the target PCB thickness and mounting orientation. Cross-reference the manufacturer datasheet for any recent updates to the product specifications or compliance status.

Edgeboard Connectors Selection Notes

Select this model when a high-density connection with 58 positions is required on a dual-edge board. The 3.96 mm pitch offers spacing suitable for higher voltage isolation compared to finer pitches. Consider the through-hole termination if superior mechanical stability under vibration is necessary. Verify that the 5 A current rating aligns with the power distribution needs of the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatility in mounting styles and row configurations. The 305 series typically supports various position counts and pitch options, catering to diverse industrial and commercial interconnect needs while maintaining consistent quality standards across the family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes. Verify that any replacement part matches the 58-position count, 3.96 mm pitch, and dual-edge interface. Ensure the alternative connector maintains the same through-hole termination and current rating to preserve system integrity.
