305-062-556-504

Edgeboard Connectors Overview

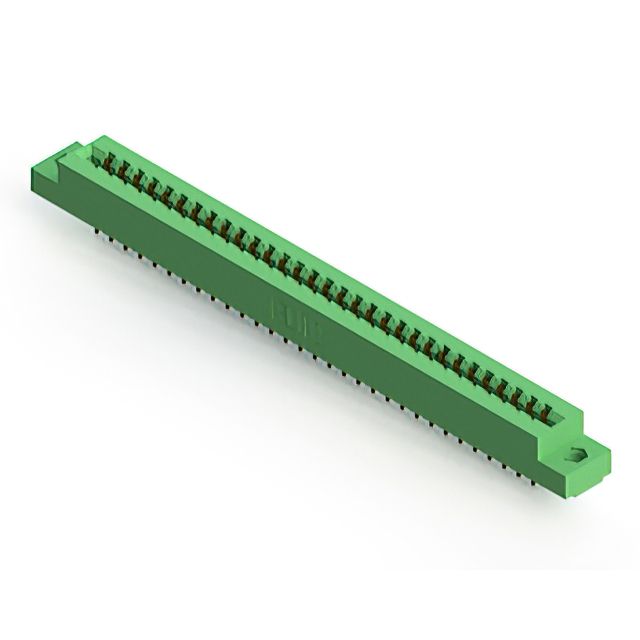

The EDAC Inc. 305-062-556-504 is a standard card edge connector from the 305 series, designed for dual female contact configurations with 62 positions. It features a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with a low-profile insulator body, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component is rated for operation within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Low-profile insulator body design for space-constrained applications
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific position count and contact configuration against the official datasheet before procurement. Confirm that the target printed circuit board thickness aligns with the 1.57 mm nominal requirement to ensure proper mechanical engagement. Check for any updated environmental compliance certifications or packaging variations that may differ from historical documentation. Ensure compatibility with existing panel mounting hardware specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 62 positions is required. The 3.96 mm pitch suits applications needing robust mechanical stability over finer pitches. Consider the vertical panel mount style if space efficiency and direct board insertion are priorities. Verify that the operating temperature range meets the environmental demands of the intended deployment scenario.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various mounting options and position counts. The series is characterized by its standardized 3.96 mm pitch and durable construction suitable for repeated mating cycles. The 305-062-556-504 variant specifically addresses needs for higher density connections in a dual-row format while maintaining the structural integrity expected from the broader product line.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the same 305 series family, such as 305-068-556-504 or 305-016-556-504, based on position requirements. Ensure substitute models maintain identical pitch, board thickness acceptance, and mounting style to guarantee mechanical fit without redesigning the host panel.
