305-064-555-212

Edgeboard Connectors Overview

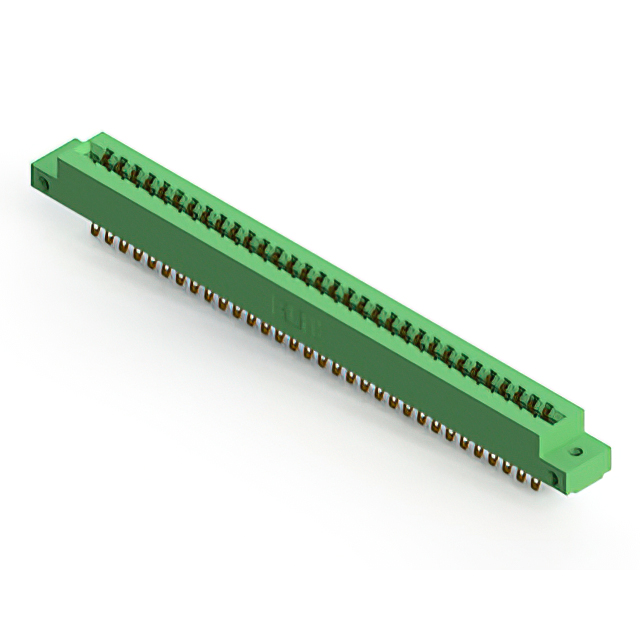

The EDAC Inc. 305-064-555-212 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 64 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and supports board thicknesses ranging from 1.37 mm to 1.78 mm. Constructed with copper alloy contacts featuring gold plating, it ensures reliable electrical performance. The housing is made of green thermoplastic polyester, providing durability and insulation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for thermal stability
• Panel mount vertical installation style

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with target PCB thickness limits before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and lead times. Confirm RoHS compliance requirements match project specifications.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-row interface is required for panel-mounted assemblies. The 3.96 mm pitch accommodates standard industrial board dimensions. Verify that the mating card edge thickness falls within the specified operational range. Consider the vertical mounting orientation and flange design for chassis integration constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations for diverse connectivity needs. The 305 series is characterized by robust mechanical construction and reliable electrical performance in demanding environments. It serves as a foundational component for modular electronic systems requiring durable edge-board connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series variants with matching 64-position dual-row layouts. Verify identical 3.96 mm pitch and board thickness tolerances for direct interchangeability. Ensure equivalent gold plating specifications and thermoplastic housing materials are maintained for environmental resilience.
