305-074-500-578

Edgeboard Connectors Overview

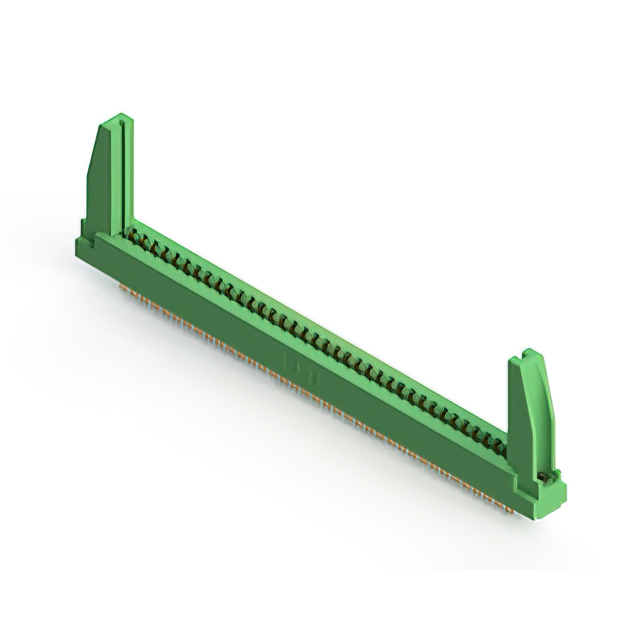

The EDAC 305-074-500-578 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual-row configuration with 74 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts with a wire hole termination type. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches) and provides a continuous current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual-row design accommodating 74 positions for high-density interconnects
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Wire hole termination style facilitates secure soldering connections
• Panel mount installation angle supports vertical structural integration

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interfaces
• Test and measurement instrument modules
• Computer peripheral expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulation material properties. Ensure the target application requires a 3.96 mm pitch and 1.57 mm board thickness compatibility. Confirm that the dual-row wire hole termination aligns with the assembly process requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a robust panel-mount solution is required for double-sided card edge applications. The 5 A current rating suits moderate power distribution needs alongside signal lines. Consider the physical dimensions and panel cutout specifications to ensure mechanical fit within the enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse interface requirements. The 305-074 variant specifically addresses applications needing 74 connection points in a dual-row arrangement.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series parts with matching 74-position dual-row layouts. Verify identical pitch and board thickness tolerances when cross-referencing alternative manufacturers' equivalents.
