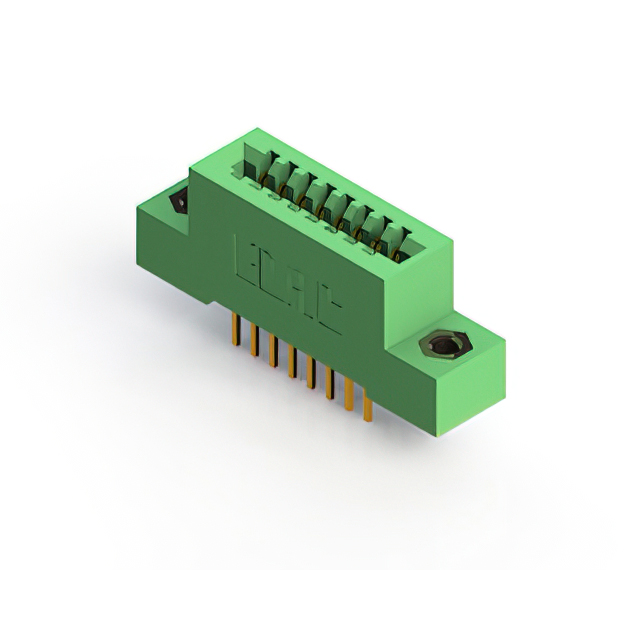

342-016-540-207

$7.45

Description：CONN EDGE DUAL FMALE 16POS 0.100
Series：342
Mfr：EDAC Inc.
Package：Box

SKU:b54be80c33dd Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

342-016-540-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 342-016-540-207

Description：CONN EDGE DUAL FMALE 16POS 0.100
Series：342
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 342-016-540-207

342-016-540-207

Edgeboard Connectors Overview

The EDAC Inc. 342-016-540-207 is a standard card edge connector featuring 16 positions with a 2.54 mm pitch. It utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing. Designed for dual-edge board insertion, it supports a nominal PCB thickness of 1.57 mm. The component offers a current rating of 3 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge contact configuration for secure board retention
Gold-plated copper alloy contacts ensuring reliable conductivity
Thermoplastic polyester insulator body for durability

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and flange configuration. Ensure compatibility with the target PCB stack-up and mating card dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 16-position dual-edge interface is required with a 2.54 mm pitch. Confirm that the application environment stays within the specified -40°C to +105°C operating range and requires a 3 A current capacity per contact.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 series of standard card edge connectors. The series provides various position counts and mounting styles, utilizing consistent 2.54 mm spacing and thermoplastic polyester materials across the family for standardized integration.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 342-series variants sharing identical 16-position and 2.54 mm pitch specifications. Verify mechanical fit and electrical ratings match the original design requirements before substitution.
