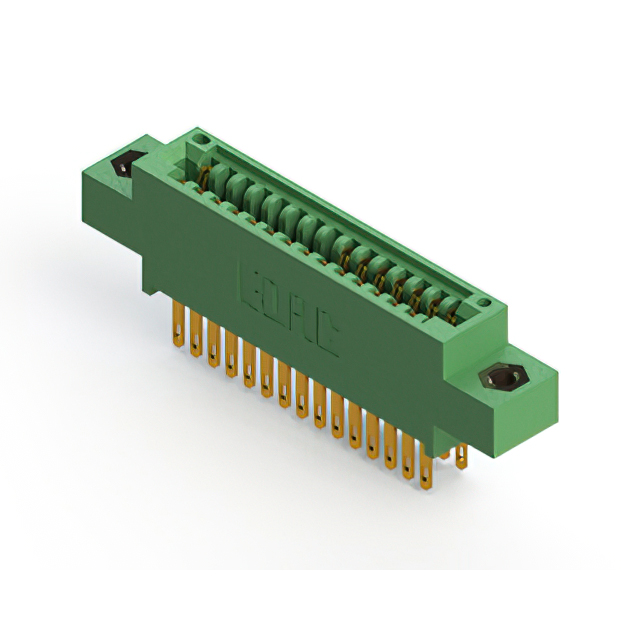

345-030-500-807

$13.54

Description：CONN EDGE DUAL FMALE 30POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:ee615f733293 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

345-030-500-807 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 30POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-030-500-807

Description：CONN EDGE DUAL FMALE 30POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：15
Number of Positions：30
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-030-500-807

345-030-500-807

Edgeboard Connectors Overview

The EDAC Inc. 345-030-500-807 is a standard card edge connector designed for vertical through-hole mounting. It features 30 positions arranged in a dual-row configuration with a 0.100 inch (2.54mm) contact pitch. The connector utilizes female contacts made of copper alloy with gold plating, suitable for non-specified dual-edge cards. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact design for secure mating with printed circuit boards
Vertical through-hole termination method ensuring stable mechanical connection
Gold-plated copper alloy contacts providing reliable conductivity and corrosion resistance

Edgeboard Connectors Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Medical device internal signal routing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm flange type and termination style. Ensure compatibility with target PCB stack-up dimensions and thermal requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with vertical orientation is required. Confirm that the target application board thickness falls within the specified operational range and that the current rating aligns with system electrical demands.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options, providing modular solutions for high-density interconnect applications across multiple industrial sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 345-030-520-807 for similar specifications. Verify exact dimensional tolerances and flange configurations before substituting to ensure mechanical fit within the assembly.
