345-112-556-807

Edgeboard Connectors Overview

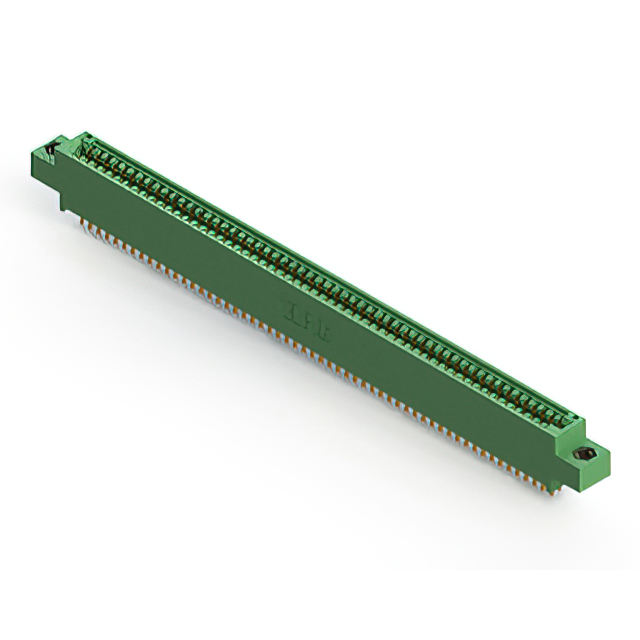

The EDAC Inc. 345-112-556-807 is a standard card edge connector featuring 112 positions arranged in a dual row configuration. It utilizes a 0.100-inch (2.54mm) pitch and is designed for PCBs with a thickness of 0.062 inches. The connector employs a through-hole mounting style with vertical orientation and solder pin termination. Contacts are gold-plated copper alloy, rated for 3A current, while the housing is green thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for high-density signal routing
• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• Thermoplastic polyester housing provides thermal stability and mechanical strength

Edgeboard Connectors Applications

• Telecommunications equipment
• Computing and data storage systems
• Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness, termination type, and flange configuration. Ensure compatibility with target PCB thickness and panel cutout dimensions. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 112 positions is required. Verify that the 0.100-inch pitch aligns with the mating card edge design. Ensure the through-hole vertical mounting style fits within the enclosure constraints. Confirm that the 3A current rating per contact meets the circuit requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options. It is designed for general-purpose interconnect applications requiring robust mechanical connection and stable electrical performance in industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series parts sharing identical pitch, row count, and termination style. Verify dimensional compatibility and electrical ratings before substituting. Consult official EDAC documentation for approved alternative part numbers.
