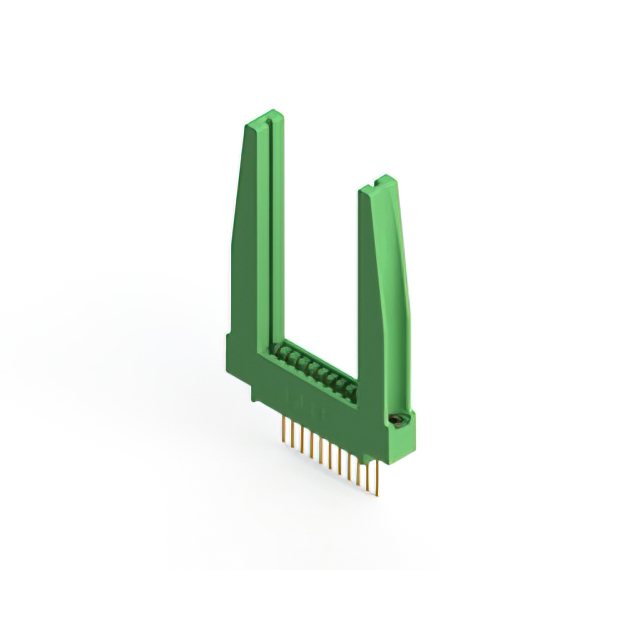

346-011-541-678

$7.48

Description：CONN EDGE SGL FMALE 11POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box

SKU:ee10348e287f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

346-011-541-678 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 11POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 346-011-541-678

Description：CONN EDGE SGL FMALE 11POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：11
Number of Positions：11
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 346-011-541-678

346-011-541-678

Edgeboard Connectors Overview

The EDAC Inc. 346-011-541-678 is a standard card edge connector receptacle featuring 11 positions with a 3.175 mm (0.125 inch) pitch. Designed for through-hole vertical mounting, it utilizes gold-plated copper alloy contacts rated for 3 A current. The unit accommodates a 1.57 mm board thickness and employs wire wrap termination. Its thermoplastic polyester housing is green, ensuring reliable signal transmission in single-edge applications.

Edgeboard Connectors Feature Summary

Gold-plated copper alloy contacts ensure durable electrical connectivity
Thermoplastic polyester insulator provides structural stability
Vertical through-hole mounting facilitates PCB integration

Edgeboard Connectors Applications

General electronic circuit interconnections
Industrial control system modules
Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the manufacturer part number 346-011-541-678 against official EDAC documentation to confirm authenticity. Ensure the received component matches the specified 11-position configuration and green housing color. Cross-reference the datasheet for precise mechanical dimensions and contact plating requirements before integration into production lines.

Edgeboard Connectors Selection Notes

Select this component when a 11-position single-edge connector is required with a 3.175 mm pitch. It is suitable for applications demanding vertical through-hole assembly and wire wrap termination. Verify that the target printed circuit board thickness aligns with the 1.57 mm specification to ensure proper mechanical fit and contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and mounting styles, providing versatile interconnection solutions. The 346 series is characterized by its robust construction and compatibility with standard PCB manufacturing processes, serving diverse industrial and commercial electronics markets.
